3' E46 330i Third stoplamp

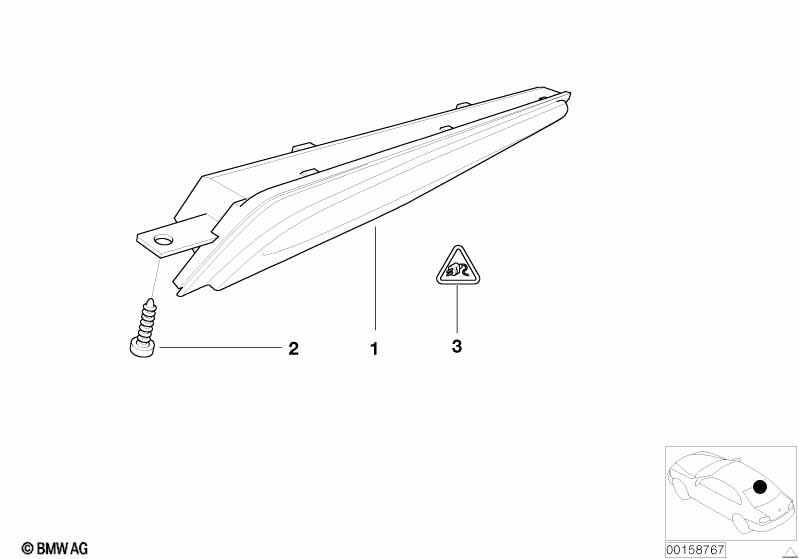

Third stoplamp
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Third stoplamp white 1 63256917540 $99.25
01 Third stoplamp 1 63258368764 $99.25
02 Fillister head screw M4X6 2 07119907657 $0.13
on main wiring harness
03 Universal socket housing uncoded 2 POL. 1 61138365340 $2.98 +core
only in conjunction with
-- Terminal socket MQS ELA 0.2-0.5 MM² SN 1 61131393704 $0.23
-- Terminal socket MQS ELA 0,5-0,75 MM² AG 1 61136931880
03 Rep. kit for socket housing 2 POL. 1 61132359999
on housing for brake light
03 Universal pin terminal uncoded 2 POL. 1 61138366275 $6.90
only in conjunction with
-- Pin contact MQS ELA with cable 0,2- 0,5MM² 1 61130005200 $2.00
-- Pin contact MQS ELA with cable 0,75 QMM 1 61130006666 $2.15
Notes
  • +core = plus core charge (possibility of a return of the old part)
