3' E46 318i Differential-drive/output

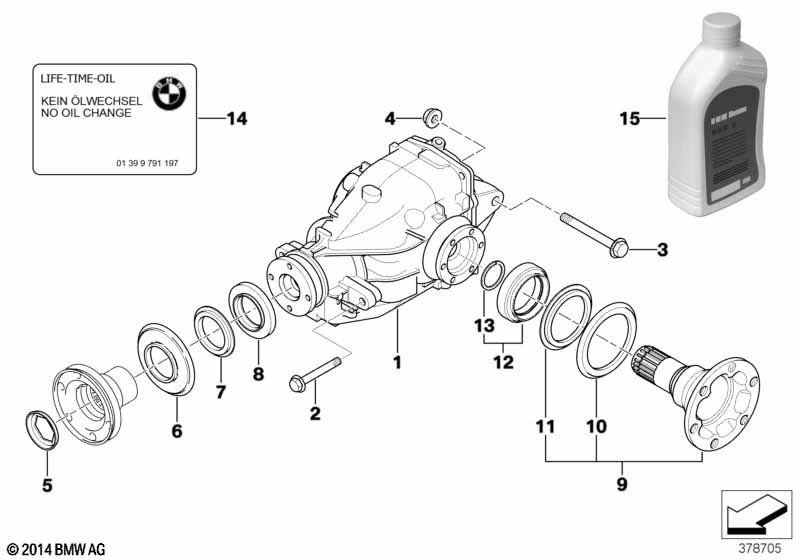

Differential-drive/output
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. final drive I=3,38 1 33107559330 $1546.48
For vehicles with
Automatic transmission

S205A=Yes
01 Exch. final drive I=3,45 1 33107533148
For vehicles with
Drive layout, export
and
Automatic transmission

S204A=Yes

S205A=Yes
01 Exch. final drive I=3,91 1 33107533140 $1673.24
02 Hex bolt with washer M12X1,5X80 ZNS3 2 33176760337 $1.81
03 Hex bolt with washer M14X1,5X133ZNS3 1 33176760336 $8.88
04 Self-locking collar nut M14X1,5-10 ZNS3 1 33306760349 $1.33
05 Securing plate 1 23211490120 $1.43
Important! Drive flange and nut must
not be replaced.
06 dustcover plate, large 1 33127523289 $1.33
07 dustcover plate, small 1 33121428159 $1.25
08 Shaft seal 45X65X10 AW 186 1 33127621206
09 Drive flange output LK=80MM/M8 2 06/2014 33131428269 $88.09 ENDED
LK = bolt hole
09 Drive flange output VL-93 2 33131214751
only in conjunction with
-- Shaft seal with lock ring TYP 168 2 33107505603 $18.30
LK = bolt hole
10 dustcover plate, large 2 33131428161 $1.03
11 dustcover plate, small 2 33131428162 $0.89
12 Shaft seal with lock ring TYP 168 2 33107505603 $18.30
only in conjunction with
-- Assembly ring 2 31537502681 $9.98
13 Lock Ring D=22,4 2 33131214961 $0.29
14 Stick-on label DE, EN 1 01399791197 $4.25
15 BMW Synthetik OSP 1L X 83222365987
Filling quantity, see Additional
Information
Notes
  • ENDED = the part has been discontinued (no longer available).
