3' E46 318i Tire pressure control (RDC) - ctrl unit

Tire pressure control (RDC) - ctrl unit

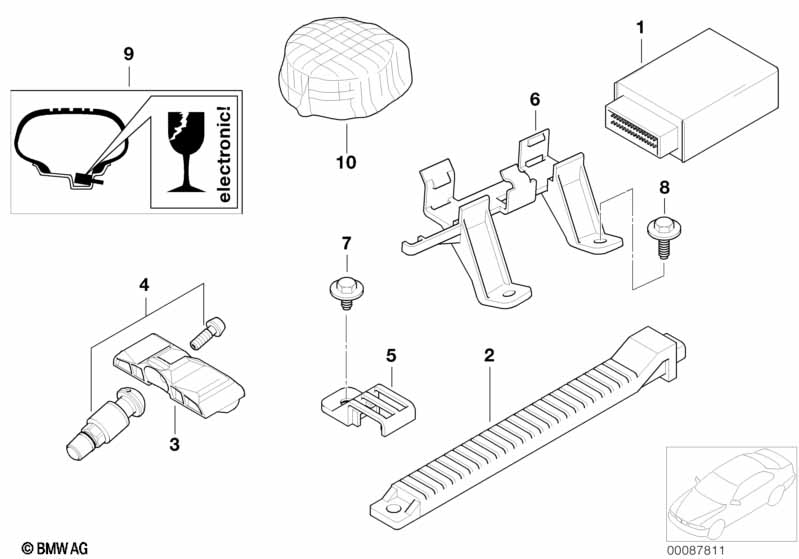

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Control unit RDC 433MHZ 1 09/2003 36146759023 $256.94
For vehicles with
Radio frequency 315 MHz

S876A=Yes
01 Control unit RDC 315MHZ 1 04/1999 09/2003 36146759022 $256.94 +core
02 Reception antenna RDC 433MHZ 4 09/2003 36118378753 $40.53
For vehicles with
Radio frequency 315 MHz

S876A=Yes
02 Reception antenna RDC 315MHZ 4 04/1999 09/2003 36146758601 $40.53 +core
for application, see illustration BMW
LA wheels
04 Screw-in valve RDC ORANGE 4 09/2003 36146792827 $13.90
04 Screw-in valve RDC SCHWARZ 4 09/2003 36146792828 $13.90
04 Screw-in valve RDC 4 09/2003 36146792829 $13.90
04 Screw-in valve RDC GRÜN 4 09/2003 36146792830
05 Holder, reception antenna RDC 2 09/2003 36111095366 $1.95
06 Holder, reception antenna RDC frnt rght 1 09/2003 36116756010 $2.55
06 Holder, reception antenna RDC frnt lft 1 09/2003 36116751241 $2.55
07 Hex bolt TS5X17 SW8 D=16 6 09/2003 07149126885 $0.49
08 Hex head screw ST4,8X16-ZNS3 2 09/2003 07119901299 $0.25
09 sign "TPC" tire pressure control 4 09/2003 36111096235 $0.78
10 "RDC" protective cover for tyres 15" - 17" 4 09/2003 36139416536 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
