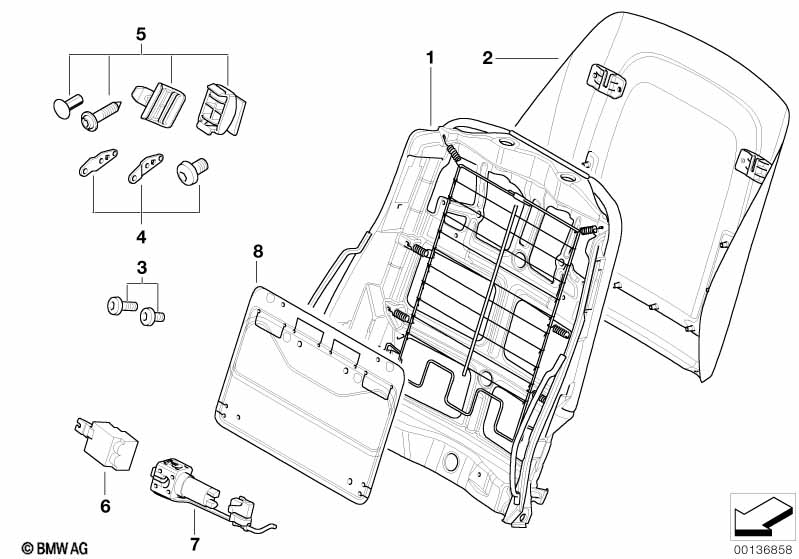

3' E46 318i Front seat backrest frame/rear panel

Front seat backrest frame/rear panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Sports seat

S481A=Yes
01 Backrest frame 2 52108234341 $71.47
For vehicles with
Leather High

V5=Yes
02 Rear panel with net bag V5BB BROMBEER 2 52107047117 $263.95 ENDED, +core
For vehicles with
Sports seat

S481A=Yes
02 Rear panel with net bag SCHWARZ 2 52108235907 $109.95
02 Rear panel with net bag GRAU 2 52108235908 $109.95
02 Rear panel with net bag BEIGE HELL 2 52108235909 $109.95
For vehicles with
Sports seat
and
Leather, mosaic/walknappa

S481A=Yes

Q9=Yes
02 Rear panel with net bag Q9HC HELLBEIGE 2 03/1999 52108267637 $268.95 ENDED, +core
For vehicles with
Sports seat
and
  Leather, mosaic/walknappa
  or
  Leather High

S481A=Yes

Q9=Yes

V5=Yes
02 Rear panel with net bag Q9L7SW SCHWARZ 2 03/1999 52108267636 $268.95
02 Rear panel with net bag Q9LT LIGHTGELB 2 03/1999 52108267638 $268.95 ENDED
03 set of fittings for seat insets 2 52108251432 $3.37
04 set of fittings for seat shell 2 52108240499 $5.48
05 set of fittings for backrest rear panel 2 52108240495 $16.54
06 Valve unit 2 06/2002 52107004689 $103.32
06 Valve unit 2 06/2002 52107160372 $103.32
07 Lumbar support pump 2 06/2002 52108099008 $137.85
07 Lumbar support pump 2 06/2002 67807025381 $115.41
08 Lordosis pad 2 52108099007 $62.83
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
