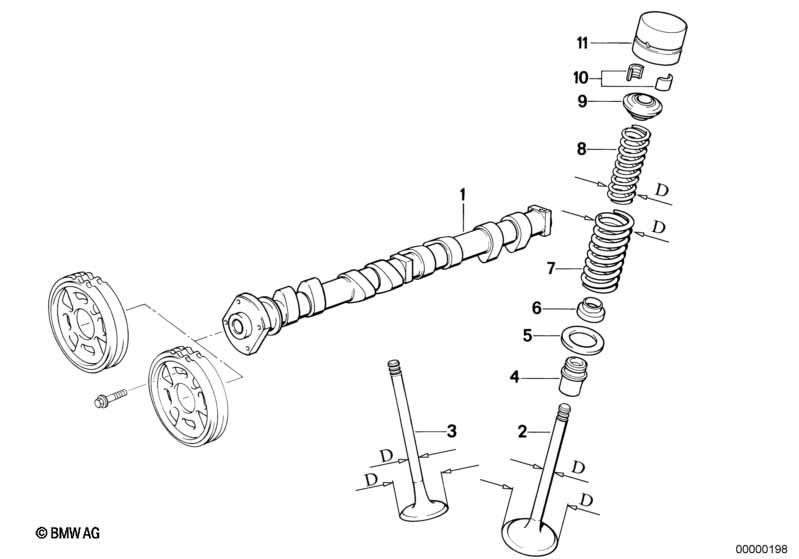

3' E30 318i Valve Timing Gear - Cam Shaft

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price	Notes
01	Inlet camshaft		1			11311727137	$656.27
01	Camshaft exhaust		1			11311727138	$702.29
02	Intake valve	33,0/6,97MM	8			11341722908	$44.04
	VALVE HEAD THICKNESS: +0,2MM
02	Intake valve w.oversize VA.system +0,1mm	33,0/7,07MM	8		09/1989	11341726058	$61.38	ENDED
02	Intake valve		8			11341726262		ENDED
	VALVE HEAD THICKNESS: +0,4MM
02	Intake valve w.oversize VA.system +0,2mm	33,0/7,17MM	8			11341730655	$111.04	ENDED
03	Exhaust valve	30,5/6,96MM	8		02/1991	11341727151	$68.92
03	Exhaust valve	30,5/6,96MM	8	02/1991		11341722909	$73.85	ENDED
03	Exhaust valve		8	02/1991		11341722891
	VALVE HEAD THICKNESS: +0,2MM
03	Exh. valve w.oversize VA.system +0,1mm	30,5/7,06MM	8		02/1991	11341727152	$81.47	ENDED
03	Exhaust valve	30,5/6,96MM	8		02/1991	11341727910	$67.24	ENDED
03	Exh. valve w.oversize VA.system +0,1mm	30,5/7,06MM	8	02/1991		11341726059	$129.76
	VALVE HEAD THICKNESS: +0,4MM
03	Exhaust valve w.oversize VA.system+0,2mm	30,5/7,16MM	8		02/1991	11341727155	$81.47	ENDED
03	Exhaust valve w.oversize VA.system+0,2mm	30,5/7,16MM	8	02/1991		11341730656	$129.76
04	Repair kit valve seal ring		2			11349059171	$35.29
05	Lower spring plate		X			11341726969	$3.77
06	Lower spring plate		X			11341722544	$3.77
07	Valve spring	D=30,0MM	X			11341727768	$7.88
08	Valve spring	D=20,9MM	X			11341727769	$7.88
09	Upper spring plate		X			11341722822	$3.77
10	Valve collet		X			11341307136	$1.08
11	Hydraulic valve lifter		X			11321734341	$32.50
