3' E30 325i Electro-mechan.folding top rod assy

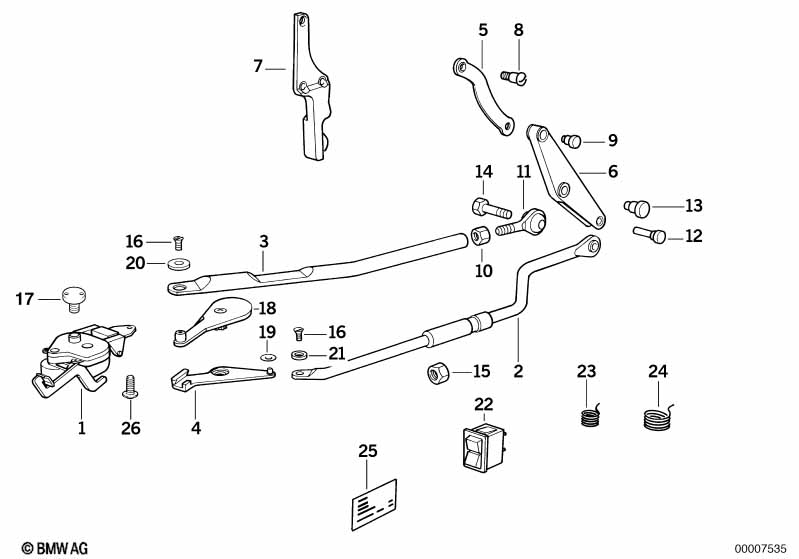

Electro-mechan.folding top rod assy
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Drive 1 54348106979 $702.16
02 Push rod front 1 54348112784 $68.43
only in conjunction with
-- Push rod rear 1 54348112785 $40.46
ONLY APPLIES TO RETROFITTING
02 Push rod front 1 54348112784 $68.43
only in conjunction with
-- Push rod rear 1 54348121683 $40.46
03 Pull rod 1 54348112787 $62.73
04 Lever 1 54348112788 $104.08
05 Lever 1 54348112790 $27.54
06 Lever 1 54348112789 $25.17
07 Lever 1 54348121684 $76.57
08 Fit bolt M6X0.75X13 1 54318134533 $19.87
09 Rivet 1 54348129595 $2.73 ENDED
10 Hex nut M10 1 54348134530 $4.78
11 Joint link 1 54348121719 $38.79
12 Rivet B6X12 1 07119949226 $2.15 ENDED
13 Rivet 1 54318129346 $5.93
14 Hex bolt M8X12 1 04/1993 07119913616 $0.25 ENDED
14 Hex bolt M8X12 1 07119902914 $0.47
14 Hex bolt M10X25-8.8 ZN 1 07119913834 $0.71
14 Hex bolt M10X24 1 54348134532 $8.76 ENDED
15 Hex nut M10X1 1 54348134531 $2.11
16 Countersunk head screw M5X35 1 07119900822 $1.00 ENDED
16 Countersunk head screw M5X40-8.8-ZN-SW 1 07119900823 $1.09
16 Csk.fillister head srew M3X6 2 07119928403 $0.96
16 Csk.fillister head srew M4X6-SW 1 07119928563 $0.82
17 Saucer-head screw M10X1X6 1 54348106997 $20.76
18 Lever 1 54348106993 $82.13
19 Shim 15X29X0,5 1 54348121689 $2.43
20 Stop disk 1 54348106995 $5.68
21 Stop disk 1 54348106996 $2.02 ENDED
22 Switch folding top 1 61312230532 $85.50
23 Cable harness folding top 1 61121394264 $144.48
24 Current supply wiring set 1 61121394322 $37.71 ENDED
25 Operating instructions, English 1 51142232054 $4.47 ENDED
26 Fillister head screw M6X16 6 04/1993 54341394318 $1.54 ENDED
26 Fillister head screw M6X16 6 07149113787 $0.71
Notes
  • ENDED = the part has been discontinued (no longer available).
