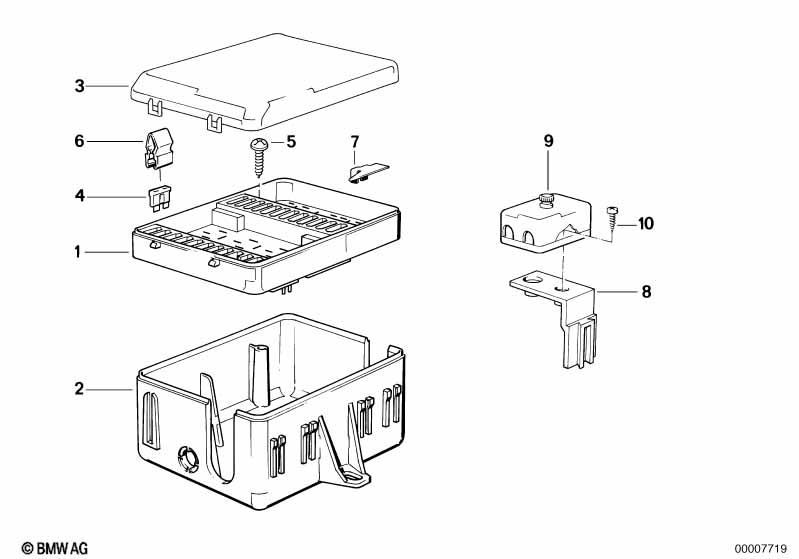

3' E30 325i Fuse box

Fuse box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuse box 1 61131370761 $260.09
02 Wiring box 1 09/1986 61131368813 $25.86
02 Wiring box 1 09/1986 61131380973 $25.86 ENDED
03 Cover 1 61131368802 $29.44
04 Fuse 15A X 05/1982 61131372626 $0.75 ENDED
04 Fuse 15A X 61131372526
04 Fuse 30A X 05/1982 61131372628 $0.75
04 Fuse X 61131372529
04 Fuse 7,5A X 08/1983 61131370987 $0.75
04 Fuse 7,5A X 61131372524 $0.58
04 Fuse 20A X 10/1987 61131386848 $0.75 ENDED
04 Fuse 20A X 04/1993 61131372518 ENDED
04 Fuse 20A X 61146953470
04 Fuse 25A X 61131372627 $0.75 ENDED
04 Fuse X 04/1993 61131370668 ENDED
04 Fuse 25A X 05/1982 61146953471 ENDED
04 Fuse X 61131372528
04 Fuse 2A X 61131386849 $0.75
05 Fillister head self-tapping screw ST3,5X19-Z1 2 07119907802 $0.18
06 Fuse clip 1 61131379583 $1.10
08 Fuse box holder 1 09/1986 61131373310 $2.79 ENDED
08 Fuse box holder 1 09/1986 61131381528 $2.57 ENDED
09 Fuse box 1 61131373433 $16.10
10 Fillister head screw M5X12-ZN 2 07119907627 $0.43
Notes
  • ENDED = the part has been discontinued (no longer available).
