3' E30 325i Wiring set/E.M.folding top mount.parts

Wiring set/E.M.folding top mount.parts

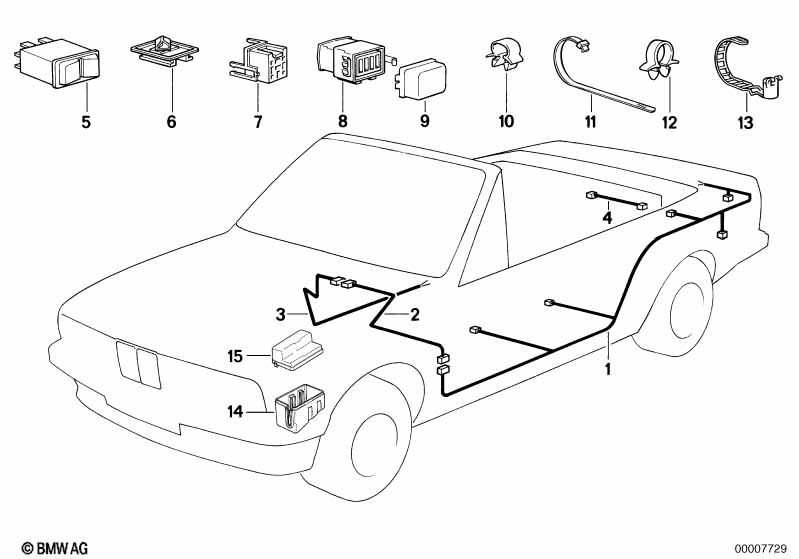

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i E.H.FOLDING TOP
01 EH folding top cable harness 1 61112230531 ENDED
02 Wiring steering column 1 61112230567 ENDED
04 Wiring blower rear window 1 61112230581 $26.51 ENDED
05 Switch folding top 1 61312230532 $85.50
06 Bracket, plug connection gray 4 61131382541 $1.03
07 Relais base black 3 61131389114 $5.32
08 Fuse box 1 61131382196 $14.38
09 Cover for fuse holder 1 61131382197 $7.10
10 Tubing support D=10,8MM 1 64111364073 $0.57
11 Cable tie L=200MM/B=3,6MM 4 61131367599 $0.43
12 Cable holder D=22MM 2 61131369503 $0.55
13 Cable tie L=119MM 2 01/1988 61131373565 $1.22 ENDED
13 Cable tie L=119MM 2 61138357028
Notes
  • ENDED = the part has been discontinued (no longer available).
