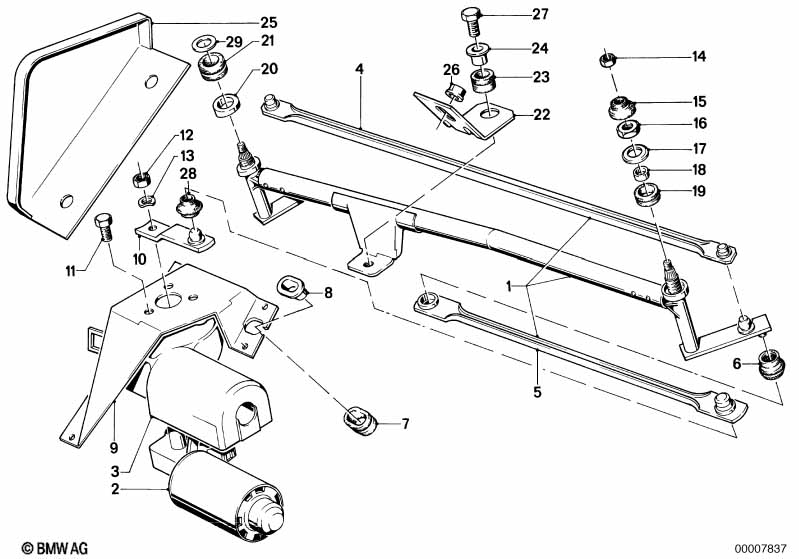

3' E30 325i Wiper

Wiper
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Linkage for wiper 1 61611370822
02 Wiper motor 1 61611386157 $299.69
03 Covering cap 1 61601370814 $4.16
04 Connection rod 1 61611370828
05 Drive rod 1 61611370829 $9.26
06 Rubber boot D=16MM 1 61611372782
07 Damper ring 3 61611371919 $2.88
08 Bushing 3 61611371920 $1.10 ENDED
09 Holder 1 61611370802 ENDED
10 Motor crank arm 1 61611370817
11 Hex bolt with washer M6X12-Z3-2 3 07119915014 $3.47
12 Hex nut M6 1 08/1996 23112322368 $0.38 ENDED
12 Hex nut M6-8-ZNS 1 08/1996 07119922832 $0.37 ENDED
12 Hex nut M6-8-ZNNIV SI 1 07119905543 $0.38
13 Wave washer B6 1 07119932072 $0.09 ENDED
13 Wave washer B6 1 07119932099 $0.38
13 Wave washer B6-ZNS3 1 07119904496 $1.78 ENDED
14 Hex nut M8-ZNS 2 07119922856 $0.56 ENDED
14 Hex nut M8-8-ZNS3 2 04/1993 07119904032 $0.16
14 Hex nut M8-8-ZNNIV SI 2 07119905515 $0.16
15 Covering cap 1 61611370387 $2.16
16 Hex nut 2 61618744121 $7.09
17 Washer 1 61611353835 $0.96
18 Ring 1 61611353766 $0.45
19 Damper ring 18X28X6 1 61611353754 $1.18
20 Spacer 1 61611370005
21 Damper ring 20X33X5 1 61611355821 $5.64
22 Holder 1 61611372780 ENDED
23 Damper ring 1 61611372676 $5.48
24 Bushing 1 61611372677 $45.66
25 Cover 1 64111370997 ENDED
26 Hex nut M6-Z2 4 04/1993 51451868108 $0.50 ENDED
26 Hex nut with plate M6 4 07147134319 $1.05
27 Hex bolt with washer M6X20-Z2 1 07119913580 $0.62 ENDED
27 Hex bolt M6X20-U2-8.8 1 07119903995 $0.53
28 Rubber boot f motor crank arm D=16MM 1 61611370649 $6.02
29 Washer 1 61618444182 $4.98
Notes
  • ENDED = the part has been discontinued (no longer available).
