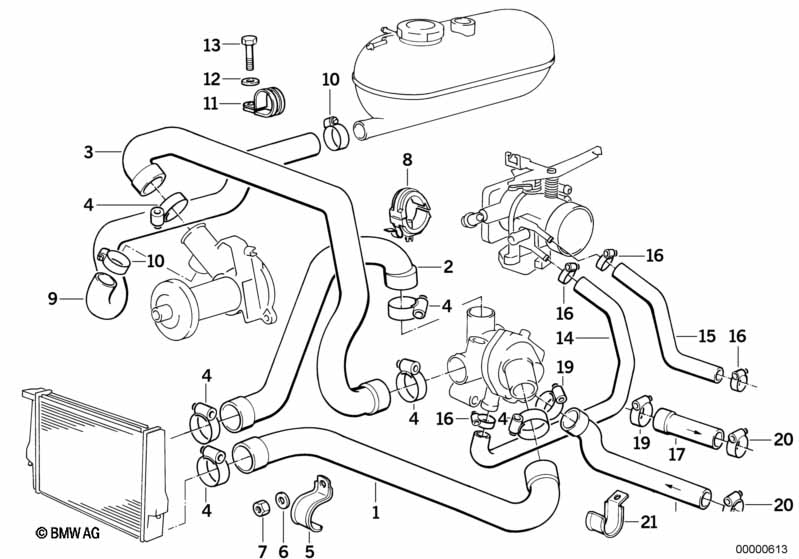

3' E30 325i Cooling System Water Hoses

Cooling System Water Hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Water hose 1 09/1987 11531279895 $37.84
02 Water hose 1 09/1987 11531286914 $23.28
03 Water hose 1 09/1987 11531287651 $37.73
04 Hose clamp L42-48 4 09/1987 07129952119 $1.15
For vehicles with
Air conditioning
and
Tropical version

=Yes

=Yes
05 Holder 1 09/1987 11531279946 $0.75
06 Washer 6,4 1 09/1987 07119931044 $0.58 ENDED
06 Washer A6,4-ZNS 1 09/1987 07119931018 $0.40 ENDED
06 Washer A6,4-ZNNIV SI 1 09/1987 07119904202
07 Hex nut M6-8-ZNS 1 09/1987 07119922832 $0.37 ENDED
07 Hex nut M6-8-ZNNIV SI 1 09/1987 07119905543 $0.38
08 Hose clamp 1 09/1987 11531714433 $2.39
09 Water hose 1 09/1987 11531289257 $22.09
10 Hose clamp L32-38 2 09/1987 07129952115 $1.27
11 Clamp D=28/6,4 1 09/1987 11531267334 $1.61
12 Wave washer B6 1 09/1987 07119932099 $0.38
12 Wave washer B6-ZNS3 1 09/1987 07119904496 $1.78 ENDED
13 Hex bolt M6X60 1 09/1987 07119912351 $0.80 ENDED
13 Hex bolt M6X60 1 09/1987 07119902994
14 Water hose 1 09/1987 13541705568 $11.11
15 Water hose 1 09/1987 13541289976 $12.07
16 Hose clamp L15-18 4 09/1987 11151727509 $1.02
17 Hose, inlet 1 09/1987 64211380527 $17.64
18 Return hose 1 09/1987 11531289377 $22.09
19 Hose clamp L32-38 2 09/1987 07129952115 $1.27
20 Hose clamp L16-30 2 09/1987 64218367179 $1.07
21 Clamp D=28/6,4 2 09/1987 11531267334 $1.61
21 Bow 1 09/1987 11531277934 $3.15 ENDED
21 Holder 2 09/1987 11531713127 $23.78 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
