3' E46 318Ci Control unit box

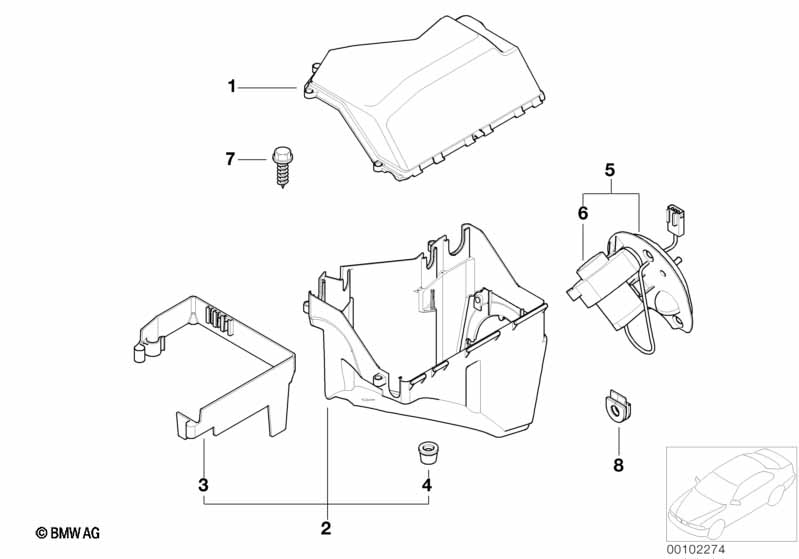

Control unit box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover electronic-box 1 09/2002 12901436443 $29.14
01 Cover electronic-box 1 09/2002 12907521582 $29.14
02 Bottom part, E-Box 1 09/2002 12907534921 $46.27
only in conjunction with
-- Cover electronic-box 1 09/2002 12907521582 $29.14
02 Bottom part, E-Box 1 12907534921 $46.27
03 Carrier relay 1 12901437378 $2.47
04 Grommet 1 12901436449 $3.37
For vehicles with
Automatic transmission
and
Sequential manual transmission (SMG)
and
Hot-climate version

S205A=No

S206A=No

S823A=No
05 Cover 1 07/2007 12901436448 $5.77 ENDED
05 Cover 1 12907570071 $5.60
For vehicles with
Automatic transmission
or
Sequential manual transmission (SMG)
or
Hot-climate version

S205A=Yes

S206A=Yes

S823A=Yes
05 Cover with blower 1 12907571019 $90.84
only in conjunction with
-- Cable tie 1 61138370478 $0.35
06 Blower unit 1 12901745182 $206.08
07 Inner hex bolt M6X24 4 09/2002 34436783644 $7.54
07 Plastic bolt RF5X26,5 4 09/2002 12907527793 $0.47
08 Grommet 1 12527506715 $3.37
Notes
  • ENDED = the part has been discontinued (no longer available).
