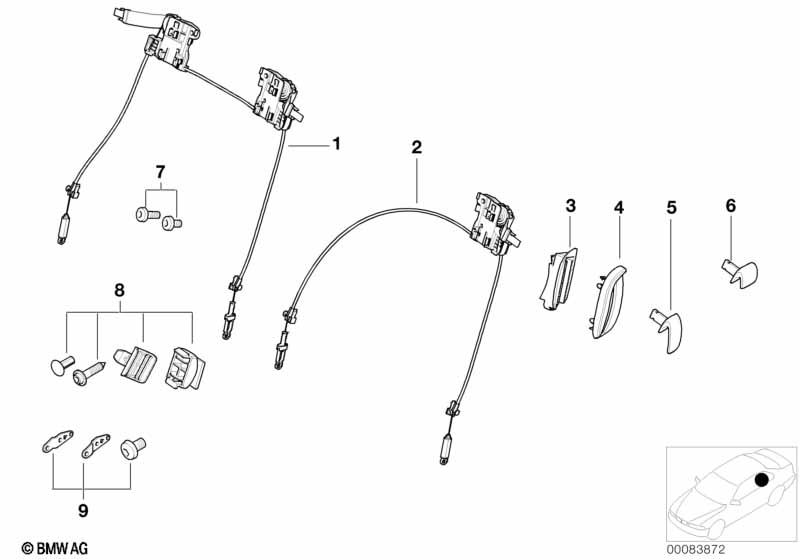

3' E46 318Ci Front seat backrest unlocking

Front seat backrest unlocking
No. Description Supp. Qty  From   Up To  Part Number Price Notes
ONLY APPLIES TO CO-DRIVERS SIDE
01 Unlocking unit 1 52108099134 $74.81
ONLY APPLIES TO DRIVER'S SIDE
02 Unlocking unit, left 1 52108099137 $80.32
02 Unlocking unit, right 1 52108099138 $74.81
03 Frame left SCHWARZ 1 52108099129 $6.02
03 Frame right SCHWARZ 1 52108099130 $6.02
04 Covering left SCHWARZ 1 52108242835 $5.55
04 Covering right SCHWARZ 1 52108242836 $5.55
04 Covering left GRAU 1 52108242837 $5.55
04 Covering right GRAU 1 52108242838 $5.55
04 Covering left HELLBEIGE 1 52108242839 $5.45
04 Covering right HELLBEIGE 1 52108242840 $5.45
05 Lever outer left SCHWARZ 1 09/2001 52108099117 $5.89 ENDED
05 Lever outer right SCHWARZ 1 09/2001 52108099118 $6.70
05 Lever outer left SCHWARZ 1 09/2001 52107064869 $6.70
05 Lever outer right SCHWARZ 1 09/2001 52107064870 $6.70
ONLY APPLIES TO CO-DRIVERS SIDE
06 Lever inner left SCHWARZ 1 52108099119 $6.70
06 Lever inner right SCHWARZ 1 52108099120 $6.70
07 set of fittings for seat insets 2 52108251432 $3.37
08 set of fittings for backrest rear panel 2 52108240495 $16.54
09 set of fittings for seat shell 2 52108240499 $5.48
Notes
  • ENDED = the part has been discontinued (no longer available).
