3' E46 318Ci Front seat rail

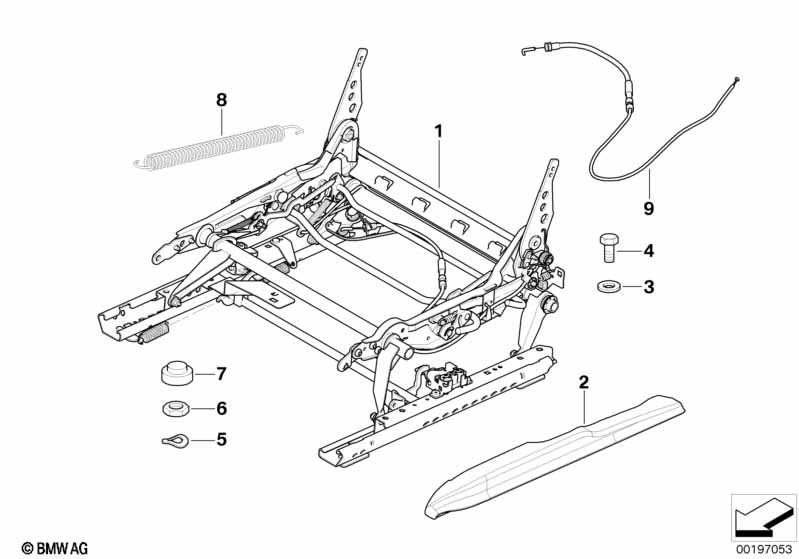

Front seat rail
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 seat mechanism left 1 52108242811 $324.12
01 seat mechanism right 1 52108242812 $324.12
02 Covering seat rail left SCHWARZ 1 52108248211 $5.40
02 Covering seat rail right SCHWARZ 1 52108248212 $5.40
03 Washer A10,5 4 07119931020 $0.40 ENDED
03 Washer ZNS3 4 08/2005 07119904198 $0.45
03 Washer 10-200 HV-ZNNIV 4 07119904168 $8.35
04 Hex bolt M10 4 52108211438 $0.71
05 Wave washer B10-ZN 4 07119932112 $0.11 ENDED
05 Wave washer B10-ZNS 4 01/2006 07119932122 $0.38 ENDED
05 Wave washer B10-ZNS3 4 01/2006 07119904463
05 Washer D=10MM 4 07119904201 $1.02
06 Hex nut with ribs M10 4 05/2006 52108265533 $0.78 ENDED
06 Hex nut with ribs M10 4 07149156956 $0.56
07 Covering cap 4 52108119867 $0.21
08 spring, backrest adjustment 2 52108251439 $5.07
09 Bowden cable, Easy Entry, left 1 52107181115 +core
09 Bowden cable, Easy Entry, right 1 52107181116 +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
