3' E46 318Ci Seat, front, tilt adjustment

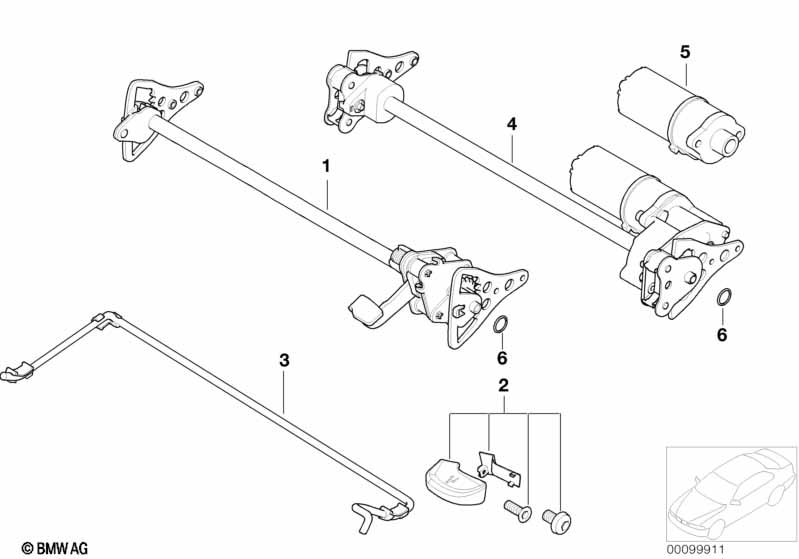

Seat, front, tilt adjustment
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Sports seat

S481A=Yes
01 Left seat angle adjustment 1 52108240051 $126.36
01 Right seat angle adjustment 1 52108240052 $126.36
02 Handle left SCHWARZ 1 52108240497 $10.89
02 Handle right SCHWARZ 1 52108240498 $10.89
03 Torsion spring left 1 52108099005 $12.64
03 Torsion spring right 1 52108099006 $12.64
For vehicles with
Seat adjuster, electric, with memory

S459A=Yes
04 Left seat angle adjustment 1 03/2003 52108240311 $162.16 ENDED
04 Right seat angle adjustment 1 03/2003 52108240312 $147.31 ENDED
04 Left seat angle adjustment 1 03/2003 52107111879 $200.52 +core
04 Right seat angle adjustment 1 03/2003 52107111880 $200.52 +core
For vehicles with
Electr. front seat adjustment

S458A=Yes
04 Left seat angle adjustment 1 03/2003 52108226413 $151.47 ENDED
04 Right seat angle adjustment 1 03/2003 52108226414 $149.91 ENDED
04 Left seat angle adjustment 1 03/2003 52107111877 $200.52 +core
04 Right seat angle adjustment 1 03/2003 52107111878 $200.52 +core
05 Engine, seat angle adjustment CRH 1-1240-01 1 03/2003 52108251498 $113.61
For vehicles with
Seat adjuster, electric, with memory

S459A=Yes
05 Engine, seat angle adjustment CRH 1-1241-01 1 03/2003 52108251489 $113.61
05 Actuator inclination adjusting 1 03/2003 52107112678 $113.61
For vehicles with
Electr. front seat adjustment

S458A=Yes
05 Actuator inclination adjusting 1 03/2003 52107112677 $113.61
06 O-ring 1,8 X 8,0 2 07119906356 $0.53
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
