3' E36 318is Hydro steering-vane pump/mounting

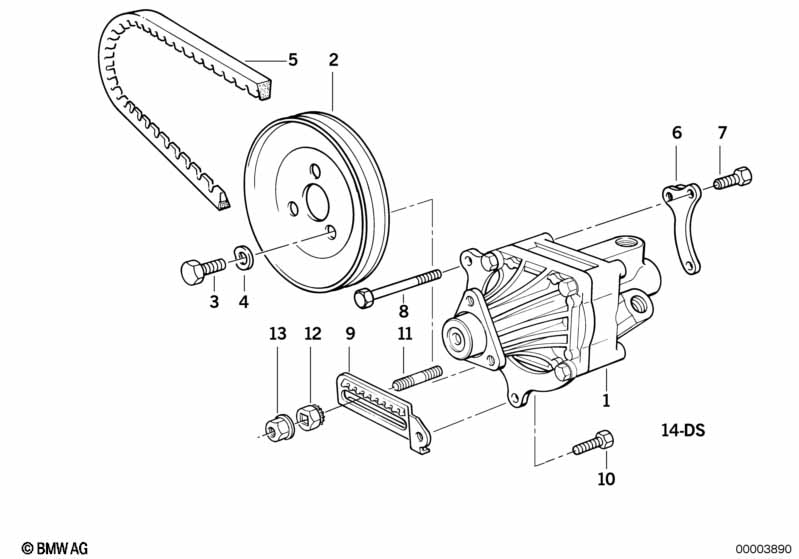

Hydro steering-vane pump/mounting
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. power steering pump ZF 1 01/1994 32411141419 $397.65
02 Pulley 1 01/1994 32421717746 $70.70
03 Hex bolt M8X12 3 01/1994 07119913616 $0.25 ENDED
04 Washer A8,4-200 3 01/1994 07119900052 $0.11 ENDED
05 Fan belt 10X730 1 01/1994 32421727180 $8.48
06 Supporting plate 1 01/1994 32421727134 $5.00
07 Hex bolt M8X18 2 01/1994 07119913627 $0.24 ENDED
08 Hex bolt M8X70 1 01/1994 07119912800 $2.18
09 Adjusting bar 1 01/1994 32421727136 $5.42
10 Hex bolt M8X20 1 01/1994 07119913720
11 Stud bolt M8X40-ZN 1 01/1994 07129908133 $0.30 ENDED
11 Stud bolt M8X40 1 01/1994 07129903964
12 Idler 1 01/1994 12317677914 $4.26
13 Self-locking hex nut M8-8-ZNNI SI 1 01/1994 07129906196 $1.60
14 Gasket set vane pump ZF 1 01/1994 32411135880 $41.08
Notes
  • ENDED = the part has been discontinued (no longer available).
