3' E36 318is Hydro steering-oil pipes

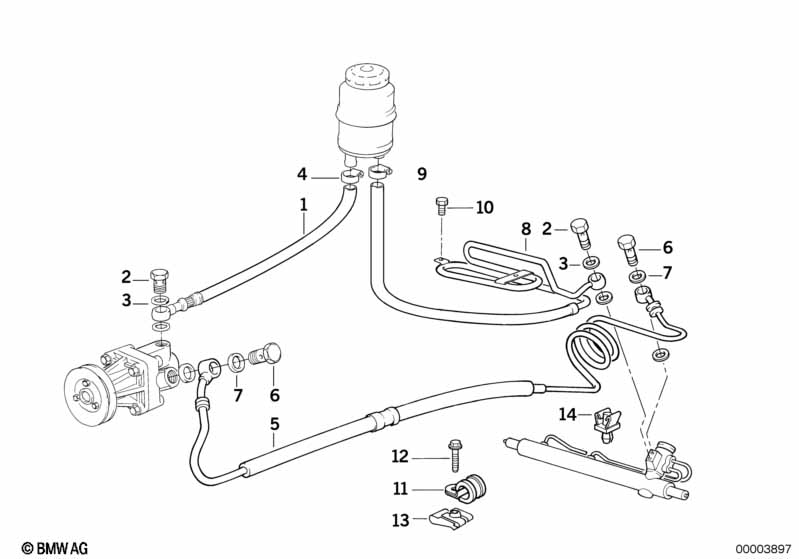

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold 1 01/1994 32411141274 $100.00
01 Supply hose 1 01/1994 32411093116 $35.95
02 Hollow bolt M16X28 2 09/1995 32416783887 $3.98 ENDED
02 Hollow bolt M16X28 2 09/1995 32416852470
03 Gasket ring A16X22-CUSN 4 09/1995 32411093597 $0.27
04 Hose clamp L18-24 1 09/1995 07129952109 $1.07
05 Pressure hose assy 1 01/1994 32411138802 $200.87
05 Pressure hose assy 1 01/1994 32411141918 $200.87 ENDED
06 Hollow bolt M14X1,5X26 2 09/1995 32416783886 $2.11 ENDED
06 Hollow bolt M14X1,5X26 2 09/1995 32416852469
07 Gasket ring A14X20-CUSN 4 32411093596 $0.31
08 Return pipe without cooling coil 1 01/1994 32411141281 $33.00
08 Return pipe with cooling coil 1 01/1994 32411093247 $86.44
09 Hose clamp L15-19 1 07129952107 $0.93
10 Hex bolt with washer M6X12-Z1 1 07119915017 $0.36 ENDED
10 Hex bolt with washer M6X12-U1-8.8 1 07119904517 $0.36
Notes
  • ENDED = the part has been discontinued (no longer available).
