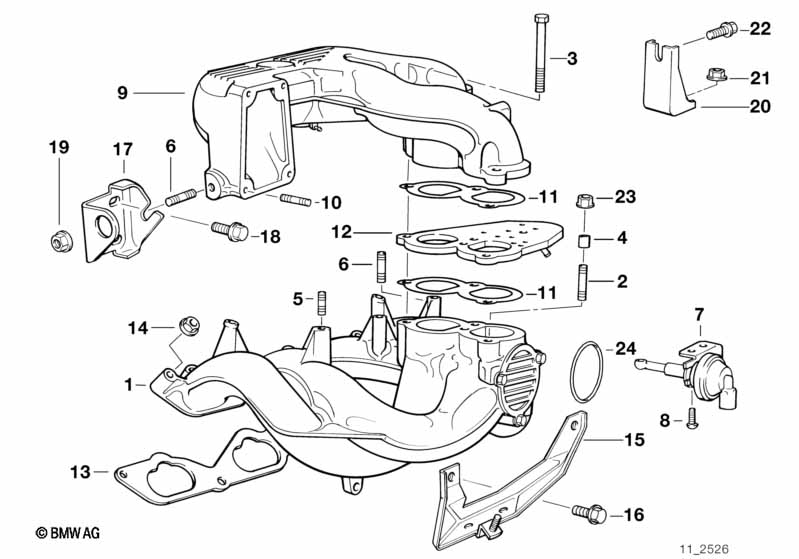

3' E36 318is Intake manifold system

Intake manifold system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold lower part 1 09/1993 01/1994 11611734535 $1353.64 +core
02 Stud bolt M7X40 2 09/1993 01/1994 07129908121 $1.18
03 Hex bolt with washer M7X100-Z1 1 09/1993 01/1994 07119901683 $1.07
04 Dowel D=9,5MM 2 09/1993 01/1994 11611739554 $6.68
05 Stud bolt M6X25-ZN 2 09/1993 01/1994 07129908100 $0.20
06 Stud bolt M7X30 2 09/1993 01/1994 07129908125 $0.96
07 Vacumm box 1 09/1993 01/1994 11611734472 $81.70
08 Fillister head screw M5X12-Z3-ZN 2 09/1993 01/1994 07119906816 $0.18
09 Intake manifold upper part 1 09/1993 01/1994 11611743139 $311.59 +core
only in conjunction with
-- Stud bolt M6X40 4 09/1993 01/1994 07129904546
10 Stud bolt M6X40 4 09/1993 01/1994 07129908104 $0.60 ENDED
10 Stud bolt M6X40 4 09/1993 01/1994 07129904546
11 Gasket Steel 2 09/1993 01/1994 11611739545 $6.08
12 Flange 1 09/1993 01/1994 11611739538 $43.50 ENDED, +core
13 Gasket Asbestos Free 1 09/1993 01/1994 11611734684 $11.46
14 Flange nut M7 5 09/1993 01/1994 11617545279 $0.47
15 Support 1 09/1993 01/1994 11611734227 $10.93
16 Hex bolt with washer M8X25-Z3 4 09/1993 01/1994 07119915082 $0.62
17 Shackle 1 09/1993 01/1994 11611734361 $5.58
18 Hex bolt with washer M8X22-Z1 2 09/1993 01/1994 07119915164 $0.62 ENDED
18 Hex bolt with washer M8X22 2 09/1993 01/1994 07119905739 $0.62
19 Hex nut with plate BM7 1 09/1993 01/1994 07129946307 $0.62
20 Support 1 09/1993 01/1994 11611247643 $5.23
21 Hex nut with plate AM7 ZNNIV SI 4 09/1993 01/1994 07129905541 $0.64
22 Hex bolt with washer M7X16-Z2 1 09/1993 01/1994 07119900509 $0.30
23 Hex nut with plate AM7 ZNNIV SI 2 09/1993 01/1994 07129905541 $0.64
24 O-ring 65X1,8 1 09/1993 01/1994 11611734225 $2.35
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
