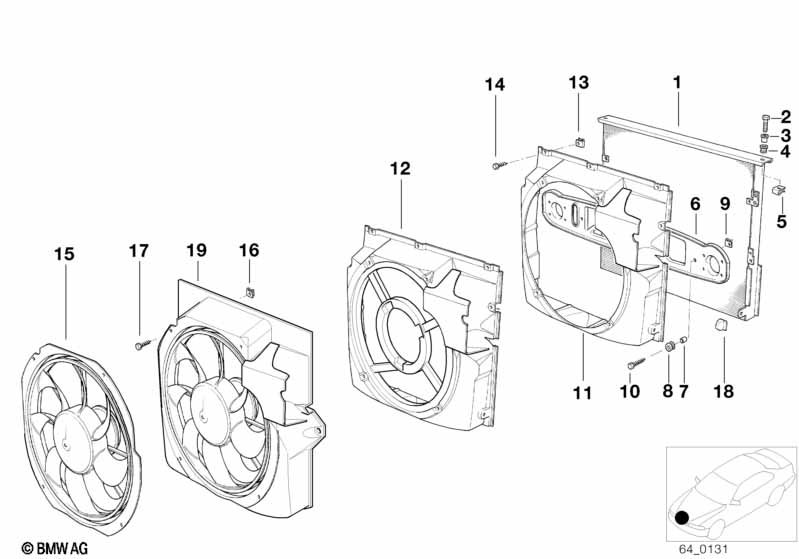

3' E36 318is Climate capacitor/additional blower

Climate capacitor/additional blower
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important!
Illustration not valid for retrofit air
conditioning Economic. For parts of air
conditioning Economic see illustration
"Air conditioning Economic, single
parts II"
01 Condenser air conditioning 1 09/1992 64538373004 $529.62
02 Hex head screw ST6,3X45-C-Z2 2 09/1992 07119916848 $0.54
03 Spacer sleeve 2 09/1992 01/1995 64538353083 $4.63
04 Grommet 2 09/1992 01/1995 64538353084 $3.00
05 Body nut ST6,3-1-ZN 2 09/1992 01/1995 07129925742 $0.25 ENDED
05 Body nut ST6,3-1 2 09/1992 01/1995 07129901663 $0.20 ENDED
05 Body nut ST6,3-1-ZNS3 2 09/1992 01/1995 07129904231
06 Straight front cross member 1 09/1992 01/1995 41138132178 $67.89
07 Bush 2 09/1992 01/1995 64538368101 $1.56
08 Grommet 2 09/1992 01/1995 64538391408 $0.81
09 Body nut ST4,8-13-ZNS3 2 09/1992 01/1995 07129904223 $0.11
10 Hex head screw ST4,8X22-C-Z2 2 09/1992 01/1995 07119916944 $0.25
ONLY APPLIES TO THYSSEN
11 Compression shroud 1 09/1992 01/1995 64548391407 $69.19
ONLY APPLIES TO SIEMENS
12 Compression shroud 1 09/1992 09/1995 64548370967 $80.37
13 Body nut ST4,8-13-ZNS3 4 09/1992 01/1995 07129904223 $0.11
14 Hex head screw ST4,8X16-ZNS3 4 09/1992 01/1995 07119901299 $0.25
15 Pusher fan 1 09/1992 01/1995 64508364093 $366.18
16 C-clip nut 4 09/1992 01/1995 07146955207 $0.29
17 Hex head screw ST4,8X19-C-Z2 4 09/1992 01/1995 07119916949 $0.25
Notes
  • ENDED = the part has been discontinued (no longer available).
