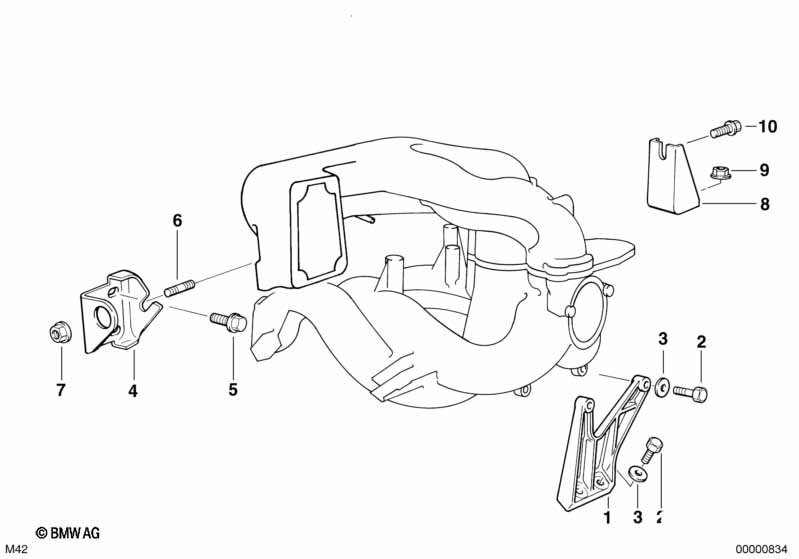

3' E36 318is Mounting parts f intake manifold system

Mounting parts f intake manifold system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Support 1 11611247496 $8.84
02 Hex bolt M8X35 4 07119912478 $1.42
03 Washer A8,4-200 4 08/2000 07119900052 $0.11 ENDED
04 Shackle 1 11611734361 $5.58
05 Hex bolt with washer M8X22-Z1 2 08/2000 07119915164 $0.62 ENDED
06 Hex bolt with washer M7X16-Z2 1 07119900509 $0.30
07 Hex nut with plate BM7 1 07129946307 $0.62
08 Support 1 11611743132 $3.05
09 Flange nut M7 1 11617545279 $0.47
10 Hex bolt with washer M7X16-Z2 1 07119900509 $0.30
Notes
  • ENDED = the part has been discontinued (no longer available).
