3' E36 318is Crankshaft with bearing shells

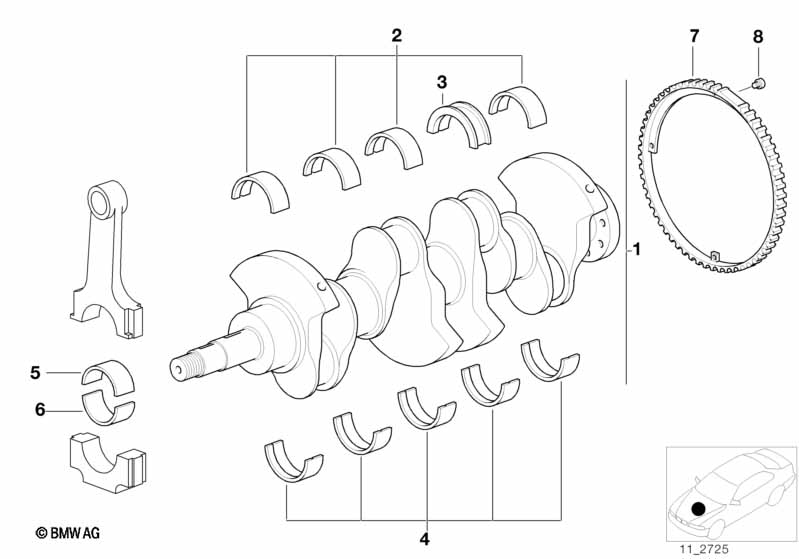

Crankshaft with bearing shells
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 AT-crankshaft with bearing shells 1 11211743134 $1072.08 +core
01 Crankshaft with bearing shells 1 11211743135 ENDED, +core
02 Bearing shell yellow 60,00MM(0) 4 11211706847 $16.27
02 Bearing shell green 60,00MM(0) 4 11211706848 $16.27
02 Bearing shell white 60,00MM(0) 4 11211706849 $16.27
02 Bearing shell yellow 59,75MM(+0,25) 4 11211706850 $16.10
02 Bearing shell green 59,75MM(+0,25) 4 11211706851 $15.88
02 Bearing shell white 59,75MM(+0,25) 4 11211706852 $15.88
02 Bearing shell yellow 59,50MM(+0,50) 4 11211706864 $15.88
02 Bearing shell green 59,50MM(+0,50) 4 11211706865 $15.88
02 Bearing shell white 59,50MM(+0,50) 4 11211706866 $16.74
03 Guide-bearing Shell yellow 60,00MM(0) 1 11211743457 $27.36
03 Guide-bearing Shell green 60,00MM(0) 1 11211743458 $27.36
03 Guide-bearing Shell white 60,00MM(0) 1 11211743459 $27.36
03 Guide-bearing Shell yellow 59,75MM(+0,25) 1 11211743460 $37.98
03 Guide-bearing Shell green 59,75MM(+0,25) 1 11211743461 $37.98
03 Guide-bearing Shell white 59,75MM(+0,25) 1 11211743462 $37.98
03 Guide-bearing Shell yellow 59,50MM(+0,50) 1 11211743463 $37.98
03 Guide-bearing Shell green 59,50MM(+0,50) 1 11211743464 $33.48
03 Guide-bearing Shell white 59,50MM(+0,50) 1 11211743465 $33.48
04 Bearing shell yellow 60,00MM(0) 5 11211717526 $16.27
04 Bearing shell green 60,00MM(0) 5 11211717527 $16.27
04 Bearing shell white 60,00MM(0) 5 11211717528 $16.27
04 Bearing shell yellow 59,75MM(+0,25) 5 11211717779 $16.10
04 Bearing shell green 59,75MM(+0,25) 5 11211717780 $15.88
04 Bearing shell white 59,75MM(+0,25) 5 11211717781 $15.88
04 Bearing shell yellow 59,50MM(+0,50) 5 11211717782 $15.88
04 Bearing shell green 59,50MM(+0,50) 5 11211717783 $15.88
04 Bearing shell white 59,50MM(+0,50) 5 11211717784 $16.74
ONLY APPLIES TO
CONNECTING ROD
05 Bearing shell, blue 45,00MM(0) 4 11241284850 $15.98
05 Bearing shell, blue 44,75MM(+0,25) 4 11241284852 $21.31
05 Bearing shell, blue 44,50MM(+0,50) 4 11241284854 $21.31
ONLY APPLIES TO
BEARING COVER
06 Bearing shell, red 45,00MM(0) 4 11241284849 $16.49
06 Bearing shell, red 44,75MM(+0,25) 4 11241284851 $13.27
06 Bearing shell, red 44,50MM(+0,50) 4 11241284853 $13.27
07 Impulse sending wheel 1 11211247050 $37.12
08 Lock bolt 4 11211739272 $0.38
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
