3' E36 318is Intake manifold system

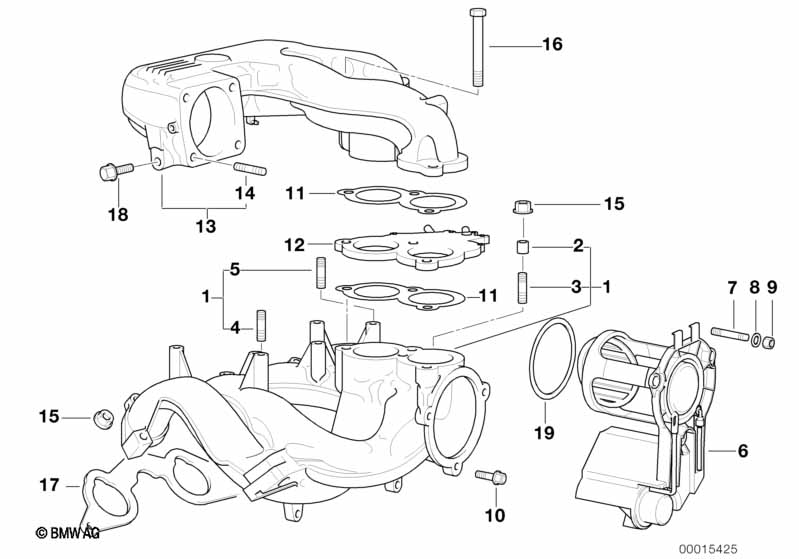

Intake manifold system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold lower part 1 11611247263 $420.25 +core
02 Dowel D=9,5MM 2 11611739554 $6.68
03 Stud bolt M7X55 2 07129908122 $0.29
04 Stud bolt M6X25-ZN 2 07129908100 $0.20
05 Stud bolt M7X30 1 07129908125 $0.96
06 Adjuster unit 1 11611438404 $195.92
07 Stud bolt 1 11611247343 $0.82
08 Washer 6,4 1 05/1990 07119931044 $0.58 ENDED
08 Washer A6,4-ZNS 1 08/2000 07119931018 $0.40 ENDED
08 Washer A6,4-ZNNIV SI 1 07119904202
09 Hex nut M6-ZNS3 1 08/2000 07119904023 $0.36 ENDED
09 Hex nut M6-8-ZNNIV SI 1 07119905544 $0.64
10 Hex bolt with washer M6X18-U1 2 07119905399 $0.36
11 Gasket Steel 2 11611247478 $6.08
12 Flange 1 11611247752 $44.95 ENDED
13 Intake manifold upper part 1 11611247266 $261.58 +core
14 Stud bolt M6X35-ZN 4 07129908103 $0.25
15 Flange nut M7 7 11617545279 $0.47
16 Hex bolt with washer M7X100-Z1 1 07119901683 $1.07
17 Gasket Asbestos Free 1 11611734684 $11.46
18 Hex bolt with washer M7X16-Z2 1 07119900509 $0.30
19 O-ring 76X2 1 11/1997 11611437690 $3.15
19 O-ring 75X2,5 1 11/1997 11611437691 $5.62
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
