3' E36 325i Dashboard covering/passenger's airbag

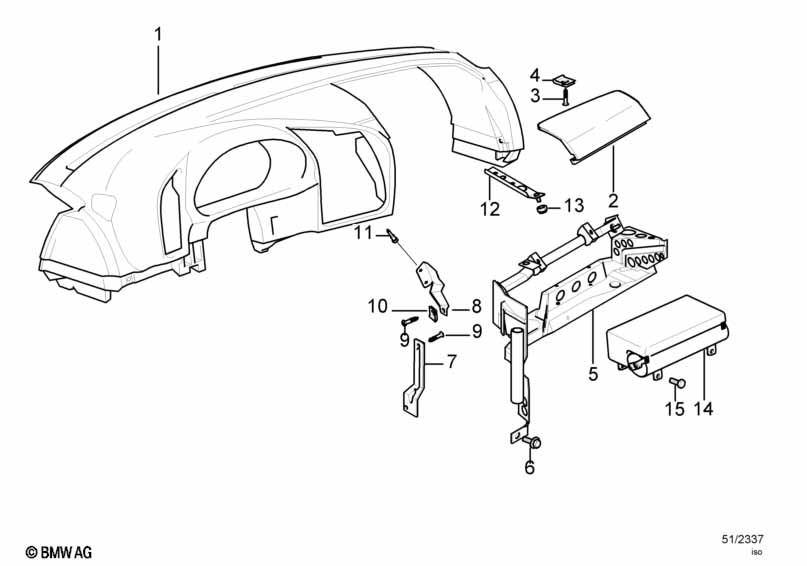

Dashboard covering/passenger's airbag
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trim panel dashboard SCHWARZ 1 51458172657 $1166.22
01 Trim panel dashboard BEIGE 1 51458172658 ENDED
01 Trim panel dashboard GRAU 1 51458172659
02 Dashboard lid SCHWARZ 1 51458172697
02 Dashboard lid GRAU 1 51458172701
02 Dashboard lid BEIGE 1 51458172702 ENDED
03 Fillister head self-tapping screw ST4,2X16-Z2 2 07119907948 $0.18
04 Body nut ST4,2-2ZNS 2 07129901645 $0.11
05 Glove box support 1 51458244817 ENDED, +core
06 Hex bolt M8X16-Z2-8.8ZNS 2 09/1999 07119902087 $0.82 ENDED
06 Hex bolt M8X16U2-8.8ZNS3 2 07119904279
07 Holder 1 51168144026 ENDED
08 Holder 1 51168144026 ENDED
09 Fillister head self-tapping screw ST4,8X13-Z1 2 07119907956 $0.18
12 Splash wall support 1 51458172862 ENDED
13 Self-locking hex nut M8-8-ZNNI SI 1 07129906196 $1.60
14 Air bag Module for passenger side 1 09/1995 72128254074 $1001.61
15 Hex bolt M8X55 2 07119912524 $0.54 ENDED
15 Hex bolt M8X55-8.8 2 07119902957 $5.27
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
