3' E36 325is Activated Charcoal Filter/TUBING

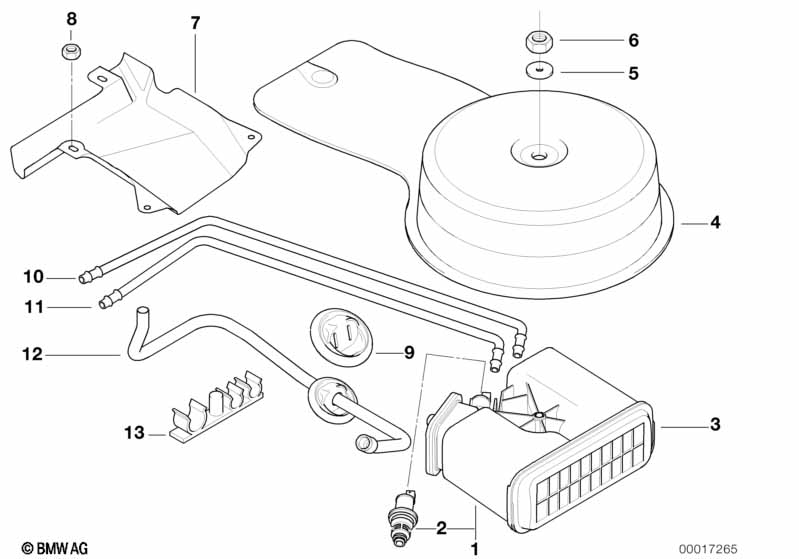

Activated Charcoal Filter/TUBING
No. Description Supp. Qty  From   Up To  Part Number Price Notes
03 Activated Charcoal Filter RUNNING LOOS 1 12/1995 16131183507 $307.60
04 Cover AKF/RUN.LOSS 1 01/1995 16131183045 $51.32
05 Washer 1 01/1995 16131183048 $0.20
06 Hex nut BM8-8-ZNNIV-SI 1 01/1995 07129904874
07 Covering outer AKF/RUN.LOSS 1 01/1995 16131183047 $25.58
08 Plastic nut M6 5 01/1995 16131176747 $0.53
09 Grommet RUNNING LOSS 1 01/1995 16131183346 $3.23
10 Vent pipe AKF/RUN.LOSS 1 01/1995 16131182962 $12.22
11 Pipe D= 8MM/RUN.LOSS 1 01/1995 16131182963 $12.02
12 Activated carbon container pipe AKF/RUN.LOSS 1 01/1995 16131183351 $24.97
13 Tubing support 1 02/1995 16131182603 $1.65
