3' E36 325is Seat, front, head restraint

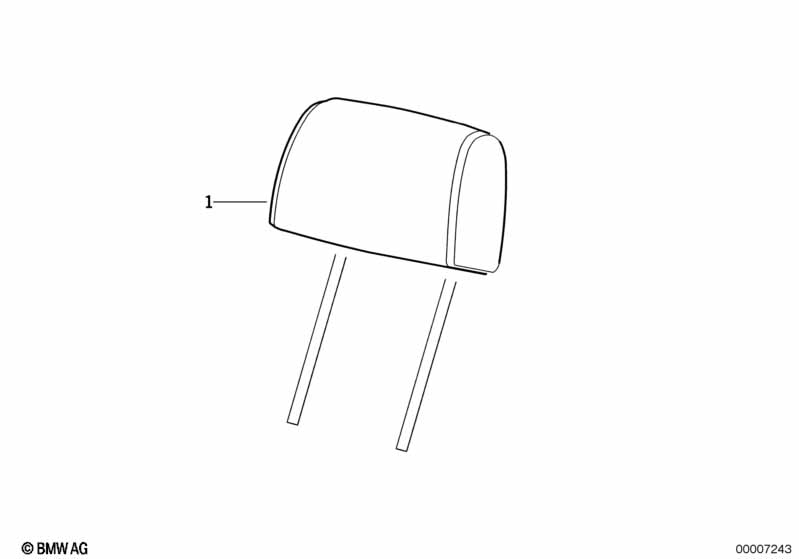

Seat, front, head restraint
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i OLD/NEW REFERENCE UPHOLSTERY CODE
REFER TO ETK
Refer to "Help - abbreviations" in EPC
For vehicles with
Imitation leather

K1=Yes
01 Headrest imitation leather 0477 SCHWARZ 2 05/1993 52108130766 $111.71 ENDED, +core
01 Headrest imitation leather 0478 ULTRAMARIN 2 05/1993 52108130767 $122.76 ENDED
01 Headrest imitation leather 0479 PERGAMENT 2 05/1993 52108130768 $111.71 ENDED
01 Headrest imitation leather 0477 SCHWARZ 2 05/1993 09/1993 52108171363 $122.76 ENDED
01 Headrest imitation leather 0478 ULTRAMARIN 2 05/1993 09/1993 52108171364 $122.76 ENDED
01 Headrest imitation leather 0479 PERGAMENT 2 05/1993 09/1993 52108171365 $115.05 ENDED
01 Headrest imitation leather 0521 BEIGE 2 09/1993 52108166268 $111.71
01 Headrest imitation leather 0477 SCHWARZ 2 09/1993 52108207722 $111.71 ENDED, +core
For vehicles with
Leather Bison

L2=Yes
01 Headrest leather 0203 SCHWARZ 2 05/1993 52108130769 $188.60 ENDED
01 Headrest leather 0394 SILBERGR.H 2 05/1993 52108130770 $126.40 ENDED
01 Headrest leather 0395 ULTRAMARIN 2 05/1993 52108130771 $152.89 ENDED
01 Headrest leather 0396 PERGAMENT 2 05/1993 52108130772 $126.40 ENDED
01 Headrest leather 0483 SILBERGRAU 2 05/1993 52108156613 $127.22 ENDED
01 Headrest leather 0396 PERGAMENT 2 05/1993 09/1993 52108171367 $188.43
01 Headrest leather 0203 SCHWARZ 2 05/1993 09/1993 52108171369 $182.97 +core
01 Headrest leather 0483 SILBERGRAU 2 05/1993 09/1993 52108171370 $188.60 ENDED, +core
01 Headrest leather 0394 SILB.-HELL 2 05/1993 09/1993 52108171371 $188.43 ENDED, +core
01 Headrest leather 0395 ULTRAMARIN 2 05/1993 09/1993 52108171372 $188.60 ENDED
For vehicles with
Leather Montana Soft

P8=Yes
01 Headrest leather 0514 SCHWARZ 2 52108166154 $162.76 ENDED
01 Headrest leather 0515 BEIGE 2 09/1993 52108166155 $182.97 ENDED
01 Headrest leather 0516 SAFRANGELB 2 09/1993 52108166156 $182.97 ENDED
01 Headrest leather 0517 BLAUVIOL. 2 09/1993 52108166157 $188.60 +core
01 Headrest leather 0595 HELLGRAU 2 09/1993 52108180156 $162.76 ENDED
For vehicles with
Leather Montana Soft
Bicolor

P8=Yes
01 Headrest leather P8ST STAHLBLAU 2 09/1998 52108256775 $158.47 ENDED
01 Headrest leather P8SX MEERGRUEN 2 09/1998 52108256776 $360.47 ENDED, +core
For vehicles with
Leather Montana Soft
Special series, Exclusive Edition

P8=Yes
01 Headrest leather P8TD TANINROT 2 02/1997 52108231515 $158.47 ENDED, +core
01 Headrest leather P8SK PAST.GRUEN 2 02/1997 52108231516 $158.47 ENDED
For vehicles with
Fabric, flat "Clover"

D6=Yes
01 Head rest cloth D6AT ANTHRAZIT 2 09/1994 52108201834 $122.76 ENDED
01 Head rest cloth D6TT GRAU 2 09/1994 52108201835 $122.76
01 Head rest cloth D6GD KLASS.ROT 2 09/1994 52108201836 $122.76
01 Head rest cloth D6TK TUERKIS 2 09/1994 52108201837 $122.76 ENDED
01 Head rest cloth D6KU KOENIGBLAU 2 09/1997 52108220615 $132.99 ENDED, +core
01 Head rest cloth D6ME ASCOTGRUEN 2 09/1997 52108233188 ENDED, +core
For vehicles with
Fabric wool velours

C4=Yes
01 Head rest cloth 0546 ANTHRAZIT 2 09/1993 52108180224 $122.76
01 Head rest cloth 0547 HELLGRAU 2 09/1993 52108180225 $122.76 ENDED
01 Head rest cloth 0548 BEIGE HELL 2 09/1993 52108180226 $122.76 ENDED
01 Head rest cloth 0549 BLAUVIOL.H 2 09/1993 52108180227 $122.76 ENDED
For vehicles with
Fabric "Rips"
CLOTH VERSION "RIPS"

C2=Yes
01 Head rest cloth 0506 ANTHRAZIT 1 09/1993 09/1994 52108166148 $122.76
01 Head rest cloth 0507 GRAU 2 09/1993 09/1994 52108166149 $122.76 +core
01 Head rest cloth 0509 TUERKIS 2 09/1993 09/1994 52108166151 $122.76 ENDED
01 Head rest cloth 0510 KLASSI.ROT 2 09/1993 09/1994 52108166152 $122.76 ENDED, +core
For vehicles with
Cloth Schattenstreifen
or
Cloth "Pique"
0383,0465=anthrazit
0384,0466=silber-grau
0386,0468=pergament
0385,0467=ultramarin

A3=Yes

A4=Yes
01 Head rest cloth ANTHRAZIT 2 07/1991 05/1993 52108144381 $122.76 ENDED
01 Head rest cloth SILBERGRAU 2 07/1991 05/1993 52108144382 $99.87 ENDED
01 Head rest cloth ULTRAMARIN 2 07/1991 05/1993 52108144383 $122.76
01 Head rest cloth PERGAMENT 2 07/1991 05/1993 52108144384 $122.76 ENDED
01 Head rest cloth ANTHRAZIT 2 05/1993 09/1993 52108171358 $122.76
01 Head rest cloth SILBERGRAU 2 05/1993 09/1993 52108171359 $122.76 ENDED
01 Head rest cloth ULTRAMARIN 2 05/1993 09/1993 52108171360 $122.76 ENDED
01 Head rest cloth PERGAMENT 2 05/1993 09/1993 52108171361 $122.76 ENDED
For vehicles with
Sports seat
and
  Cloth "Boa Boa"
  or
  Cloth "Op Art"

S481A=Yes

E7=Yes

G2=Yes
01 Head rest cloth E7AV,E7ZR,G2AT 2 01/1999 52108239982 $122.76 ENDED, +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
