3' E36 325is Rear seat head restraint

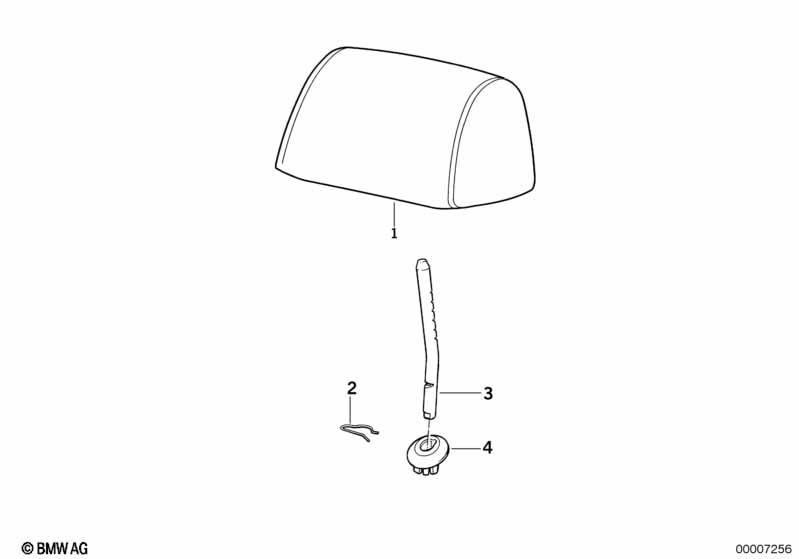

Rear seat head restraint
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i OLD/NEW REFERENCE UPHOLSTERY CODE
REFER TO ETK
Refer to "Help - abbreviations" in EPC
Cloth version
UPHOLSTERY LEATHER BISON
01 Headrest leather 0324 KARMESINRT 2 01/1992 52208119431 $204.23 ENDED, +core
For vehicles with
Leather Bison

L2=Yes
01 Headrest leather 0203 SCHWARZ 2 09/1993 52208119426 $192.20 ENDED, +core
01 Headrest leather 0394 SI.GR.HELL 2 09/1993 52208119427 $204.23 ENDED, +core
01 Headrest leather 0395 ULTRAMARIN 2 09/1993 52208119428 $204.23 ENDED
01 Headrest leather 0396 PERGAMENT 2 09/1993 52208119429 $192.20 +core
01 Headrest leather 0397 BRASIL 2 09/1993 52208119430 $145.08 ENDED
01 Headrest leather 0483 SILBERGRAU 2 09/1993 52208156640 $144.11 ENDED, +core
For vehicles with
Cloth Schattenstreifen

A3=Yes
01 Head rest cloth 0383/0465 ANTHR 2 01/1994 52208151708 $101.56 ENDED, +core
01 Head rest cloth 0384/0466 SILBE 2 01/1994 52208151709 $101.56 ENDED, +core
01 Head rest cloth 0385/0467 ULTRA 2 01/1994 52208151710 $101.56 ENDED, +core
01 Head rest cloth 0386/0468 PERGA 2 01/1994 52208151711 $101.56 ENDED, +core
For vehicles with
Imitation leather

K1=Yes
01 Headrest imitation leather 0477 SCHWARZ 2 09/1993 52208119422 $117.33 ENDED
01 Headrest imitation leather 0478 ULTRAMARIN 2 09/1993 52208119423 $94.58 ENDED
01 Headrest imitation leather 0479 PERGAMENT 2 09/1993 52208119424 $117.33
For vehicles with
Cloth "Amaretta"
or
Fabric, "M-Cross/Amaretta"
M TECH.SPORTS COUPE INDIVIDUAL SERIES 93

B4=Yes

D8=Yes
01 Head rest cloth D8AT,B4AT,E7AV 2 52202254802 $101.56 ENDED, +core
02 Spring washer 4 52101928809 $0.23
03 Guide left 2 52201977897 $7.28
03 Guide right 2 52201977898 $7.28
04 Cover SILBER 4 09/1993 52208135924 $1.41
04 Cover ULTRAMARIN 4 09/1993 52208135925 $1.45
04 Cover PERGAMENT 4 09/1993 52208135926 $1.78 ENDED
04 Cover BRASIL 4 09/1993 52208135927 $2.37 ENDED
04 Cover SCHWARZ 4 52208135923 $1.78
04 Cover GRAU 4 09/1993 52208190349 $1.78
04 Cover BEIGE 4 09/1993 52208190350 $1.78
04 Cover KLASSISCHROT 4 09/1993 52208190351 $6.36 ENDED
04 Cover TUERKIS 4 09/1993 52208190352 $2.27 ENDED
04 Cover BLAUVIOLETT 4 09/1993 52208190353 $2.27 ENDED
04 Cover SAFRANGELB 4 09/1993 52208190354 $2.27 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
