3' E36 325is Single parts of front seat controls

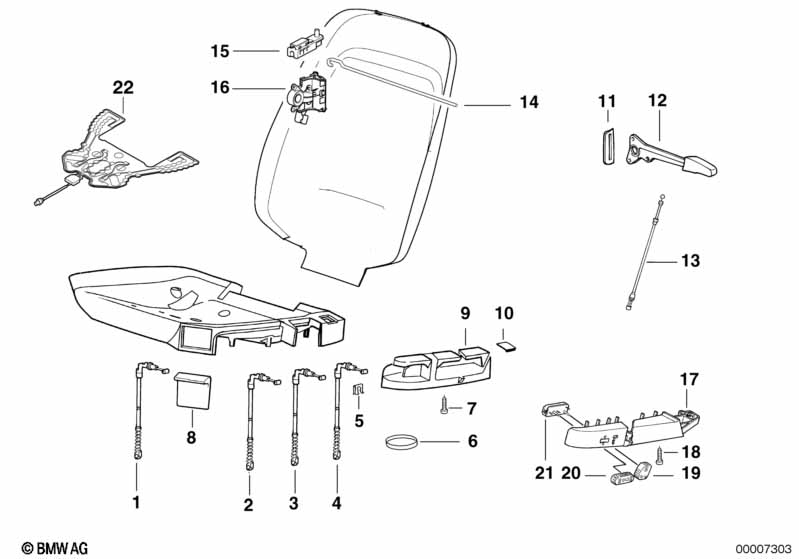

Single parts of front seat controls
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Sports seat

S481A=Yes
01 Bowden cable f seat angle adjustment GELB 2 52101977955 $9.80 ENDED
02 Bowden cable horizontal adjustment 2 01/1992 52108156199 $9.00 ENDED
02 Bowden cable horizontal adjustment ROT 2 01/1992 52101977954 $9.80
03 Bowden cable vertical seat adjuster GRUEN 2 52101977953 $10.16
04 Bowden cable adjustm.of rest inclination SCHWARZ 2 52108183287 $9.91 ENDED
05 Clamp 2 52108132161 $0.35
06 Rubber Ring 2 52101843100 $0.54
07 Screw 3,9X18 4 52108119279 $0.35
08 Lever left 1 52108122073 $13.17 ENDED, +core
08 Lever right 1 52108122074 $13.17 +core
09 Actuation unit left 1 52101977949 $37.97
09 Actuation unit right 1 52101977950 $37.97
10 Seat pan cover SCHWARZ 2 52108130790 $0.57
11 Covering left 1 09/1994 52108146489 $0.95
11 Covering right 1 09/1994 52108146490 $0.95
12 Lever left 1 09/1994 52108146485 $6.86
12 Lever right 1 09/1994 52108146486 $6.86
For vehicles with
electric adjusting

=Yes
13 Bowden cable GRAU 2 09/1994 52108211437 $20.68
For vehicles with
Seat adustment, mecanical

=Yes
13 Bowden cable BRAUN 2 09/1994 52108187999 $10.05
14 Connection rod 2 09/1994 52108190367 $0.82 ENDED
15 Clip 2 09/1994 52108183276 $6.35
16 Unlocking unit, left 1 09/1994 52108187923 $5.35
16 Unlocking unit, right 1 09/1994 52108187924 $5.35 ENDED
17 Actuation unit left SILBERGR.DUNKEL 1 09/1993 52108153599 $39.11 ENDED, +core
17 Actuation unit left ULTRAMARIN 1 09/1993 52108153601 $37.94 ENDED, +core
17 Actuation unit left PERGAM.DUNKEL 1 09/1993 52108153603 $37.94 ENDED, +core
17 Actuation unit left SCHWARZ 1 52108153597 $37.97 ENDED, +core
17 Actuation unit right SCHWARZ 1 52108153598 $37.97 ENDED, +core
17 Actuation unit left GRAU 1 09/1993 52108168731 $37.97 ENDED
17 Actuation unit right GRAU 1 09/1993 52108168732 $37.97 ENDED
17 Actuation unit left BEIGE 1 09/1993 52108168733 $37.97 ENDED
17 Actuation unit right BEIGE 1 09/1993 52108168734 $37.97 ENDED
17 Actuation unit left TUERKIS 1 09/1993 52108168735 $37.94 +core
17 Actuation unit right TUERKIS 1 09/1993 52108168736 +core
17 Actuation unit left KLASSISCHROT 1 09/1993 52108168737 $37.94 ENDED, +core
17 Actuation unit right KLASSISCHROT 1 09/1993 52108168738 $37.94 ENDED, +core
17 Actuation unit left HELLGRAU 1 09/1993 52108168739 $37.97
17 Actuation unit right HELLGRAU 1 09/1993 52108168740 $37.97 ENDED
17 Actuation unit left SAFRANGELB 1 09/1993 52108168741 $37.94 ENDED, +core
17 Actuation unit right SAFRANGELB 1 09/1993 52108168742 $37.94 ENDED, +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
