3' E36 325is Seat, front, upholstery and cover

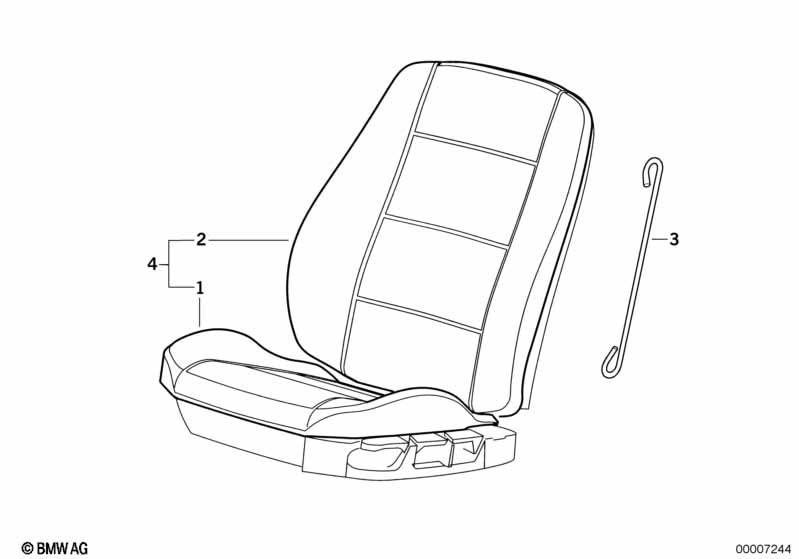

Seat, front, upholstery and cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i OLD/NEW REFERENCE UPHOLSTERY CODE
REFER TO ETK
Refer to "Help - abbreviations" in EPC
For vehicles with
Imitation leather

K1=Yes
01 Seat cover vinyl 0478 ULTRAMARIN 2 01/1992 09/1993 52108130699 $108.53 ENDED, +core
01 Seat cover vinyl 0479 PERGAMENT 2 01/1992 09/1993 52108130700 $152.89 ENDED, +core
01 Seat cover vinyl 0477 SCHWARZ 2 01/1992 52108130698 $207.32 ENDED, +core
01 Seat cover vinyl 0521 BEIGE 2 09/1993 52108166196 $207.32 ENDED, +core
For vehicles with
Leather Bison

L2=Yes
01 Seat cover leather 0203 SCHWARZ 2 09/1993 52108130701 $456.07 ENDED, +core
01 Seat cover leather 0394 SI.GR.HELL 2 09/1993 52108130702 $456.07 ENDED, +core
01 Seat cover leather 0395 ULTRAMARIN 2 09/1993 52108130703 $469.68 ENDED
01 Seat cover leather 0396 PERGAMENT 2 09/1993 52108130704 $456.07 ENDED, +core
01 Seat cover leather 0483 SILBERGRAU 2 09/1993 52108156610 $420.73 +core
For vehicles with
Leather Montana Soft

P8=Yes
01 Seat cover leather 0514 SCHWARZ 2 09/1993 52108166063 $456.07 +core
01 Seat cover leather 0515 BEIGE 2 09/1993 52108166064 $456.07
01 Seat cover leather 0516 SAFRANGELB 2 09/1993 52108166065 $448.63
01 Seat cover leather 0517 BLAUVIOL. 2 09/1993 52108166066 $456.07 ENDED, +core
01 Seat cover leather 0595 HELLGRAU 2 09/1993 52108180140 $456.07 ENDED, +core
For vehicles with
Leather Montana Soft
Special series, Exclusive Edition

P8=Yes
01 Seat cover leather P8TD TANINROT 2 02/1997 52108231479 $528.98 ENDED
01 Seat cover leather P8SK PAST.GRUEN 2 02/1997 52108231480 $566.37 ENDED, +core
For vehicles with
Leather Montana Soft
Bicolor

P8=Yes
01 Seat cover leather P8ST STAHLBLAU 2 09/1998 52108256741 ENDED, +core
01 Seat cover leather P8SX MEERGRUEN 2 09/1998 52108256742 ENDED, +core
For vehicles with
Cloth Schattenstreifen

A3=Yes
01 Seat cover cloth 0383 ANTHRAZIT 2 09/1993 52108144300 $114.95 ENDED
01 Seat cover cloth 0384 SILBERGRAU 2 09/1993 52108144301 $207.32 ENDED
01 Seat cover cloth 0385 ULTRAMARIN 2 09/1993 52108144302 $114.95 ENDED
01 Seat cover cloth 0386 PERGAMENT 2 09/1993 52108144303 $114.95 ENDED
For vehicles with
Fabric "Rips"

C2=Yes
01 Seat cover cloth 0506 ANTHRAZIT 2 09/1993 09/1994 52108166057 $114.95 ENDED
01 Seat cover cloth 0507 GRAU 2 09/1993 09/1994 52108166058 $114.95 ENDED
01 Seat cover cloth 0509 TUERKIS 2 09/1993 09/1994 52108166060 $114.95 ENDED, +core
01 Seat cover cloth 0510 KLASSI.ROT 2 09/1993 09/1994 52108166061 $114.95 ENDED, +core
For vehicles with
Imitation leather

K1=Yes
02 Cover backrest, imitation leather 0477 SCHWARZ 2 01/1992 09/1993 52108130746 $251.47 ENDED, +core
02 Cover backrest, imitation leather 0478 ULTRAMARIN 2 01/1992 09/1993 52108130747 $258.99 ENDED, +core
02 Cover backrest, imitation leather 0479 PERGAMENT 2 01/1992 09/1993 52108130748 $136.15 ENDED, +core
02 Cover backrest, imitation leather 0477 SCHWARZ 2 01/1992 09/1994 52108130746 $251.47 ENDED, +core
02 Cover backrest, imitation leather 0521 BEIGE 2 09/1993 09/1994 52108166253 $251.47 ENDED, +core
For vehicles with
Leather Bison

L2=Yes
02 Cover backrest, leather 0203 SCHWARZ 2 09/1993 52108130749 $553.20 ENDED, +core
02 Cover backrest, leather 0394 SI.GR.HELL 2 09/1993 52108130750 $496.62 ENDED
02 Cover backrest, leather 0395 ULTRAMARIN 2 09/1993 52108130751 $451.98 ENDED, +core
02 Cover backrest, leather 0396 PERGAMENT 2 09/1993 52108130752 $553.20 ENDED, +core
02 Cover backrest, leather 0483 SILBERGRAU 2 09/1993 52108156612 $451.98 +core
For vehicles with
Leather Montana Soft

P8=Yes
02 Cover backrest, leather 0514 SCHWARZ 2 09/1993 09/1994 52108166130 $553.20 ENDED, +core
02 Cover backrest, leather 0515 BEIGE 2 09/1993 09/1994 52108166131 $451.98 ENDED, +core
02 Cover backrest, leather 0516 SAFRANGELB 2 09/1993 09/1994 52108166132 $451.98 ENDED, +core
02 Cover backrest, leather 0517 BLAUVIOL. 2 09/1993 09/1994 52108166133 $451.98 ENDED
02 Cover backrest, leather 0595 HELLGRAU 2 09/1993 09/1994 52108180098 $496.62 +core
02 Cover backrest, leather P8SW SCHWARZ 2 09/1994 52108201694 $553.20
02 Cover backrest, leather P8TH HELLGRAU 2 09/1994 52108201695 $553.20 ENDED
02 Cover backrest, leather P8SN BEIGE 2 09/1994 52108201696 $553.20 ENDED
02 Cover backrest, leather P8MA BLAUVIOLET 2 09/1994 52108201697 $451.98 ENDED
02 Cover backrest, leather P8SG SAFRANGELB 2 09/1994 52108201698 $553.20 ENDED
For vehicles with
Leather Montana Soft
Special series, Exclusive Edition

P8=Yes
02 Cover backrest, leather P8TD TANINROT 2 02/1997 52108231481 $528.98 ENDED, +core
02 Cover backrest, leather P8SK PAST.GRUEN 2 02/1997 52108231482 $528.98 ENDED, +core
For vehicles with
Leather Montana Soft
Bicolor

P8=Yes
02 Cover backrest, leather P8ST STAHLBLAU 2 09/1998 52108256745 $450.86 ENDED
02 Cover backrest, leather P8SX MEERGRUEN 2 09/1998 52108256746 ENDED, +core
For vehicles with
Cloth Schattenstreifen

A3=Yes
02 Cover backrest cloth 0383 ANTHRAZIT 2 09/1993 52108144376 $136.15 ENDED
02 Cover backrest cloth 0384 SILBERGRAU 2 09/1993 52108144377 $132.93 ENDED
02 Cover backrest cloth 0385 ULTRAMARIN 2 09/1993 52108144378 $136.15 ENDED
02 Cover backrest cloth 0386 PERGAMENT 2 09/1993 52108144379 $99.88 ENDED
For vehicles with
Fabric wool velours

C4=Yes
02 Cover backrest cloth 0546 ANTHRAZIT 2 09/1993 09/1994 52108180091 $136.15 ENDED, +core
02 Cover backrest cloth 0547 HELLGRAU 2 09/1993 09/1994 52108180092 $136.15 ENDED, +core
02 Cover backrest cloth 0548 BEIGE HELL 2 09/1993 09/1994 52108180093 $136.15 +core
02 Cover backrest cloth 0549 BLAUVIOL.H 2 09/1993 09/1994 52108180094 $136.15 ENDED, +core
For vehicles with
Fabric "Rips"

C2=Yes
02 Cover backrest cloth 0506 ANTHRAZIT 2 09/1993 09/1994 52108166124 $136.15 ENDED, +core
02 Cover backrest cloth 0507 GRAU 2 09/1993 09/1994 52108166125 $136.15 +core
02 Cover backrest cloth 0509 TUERKIS 2 09/1993 09/1994 52108166127 $136.15 ENDED, +core
02 Cover backrest cloth 0510 KLASSI.ROT 2 09/1993 09/1994 52108166128 $152.89 ENDED, +core
03 Wire-strap L=1800MM X 52208129296 $1.14
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
