3' E36 325is Pad/seat pan of BMW sports seat

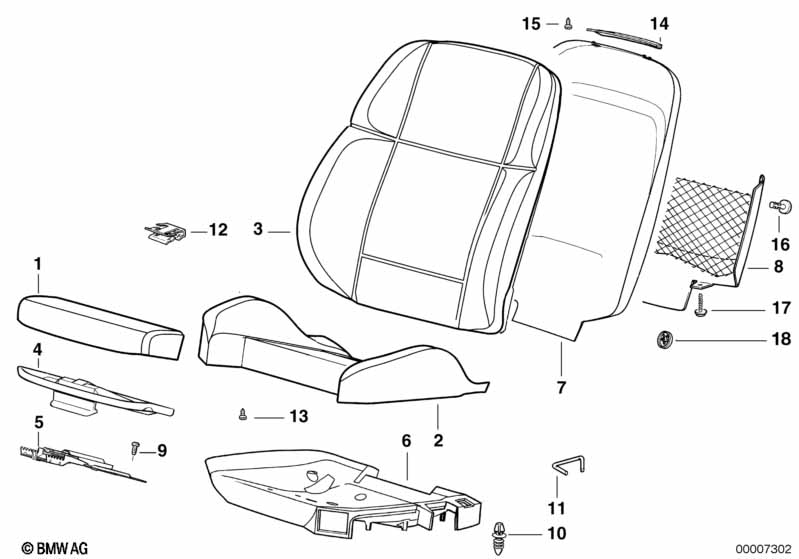

Pad/seat pan of BMW sports seat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Thigh support upholstery 2 52108122078 $31.93 ENDED
02 Pad, lower seat, front 2 52102276391 $53.00 ENDED
02 Pad seat front 2 52108122076 $113.89
only in conjunction with
-- Sensor mat f co-driver's seat identif. 2 65776905024 $124.53
-- Trimming wire front L=290MM 2 52101821497 $0.71 ENDED
-- Trimming wire rear L=270MM 2 52108135542 $0.37
03 Pad seat backrest front 2 09/1994 52108122113 $125.27 ENDED
03 Pad seat backrest front 2 09/1994 52108192572 $125.27
04 Supporting plate 2 52108122077 $49.19 ENDED
05 Holder for thigh support 2 52108122075 $24.27 ENDED, +core
06 Seat pan left SILBERGR.DUNKEL 1 09/1993 52108130669 $75.73 ENDED
06 Seat pan, right SILBERGR.DUNKEL 1 09/1993 52108130670 $75.73
06 Seat pan left ULTRAMARIN 1 09/1993 52108130671 $58.59 ENDED
06 Seat pan, right ULTRAMARIN 1 09/1993 52108130672 $58.59 ENDED
06 Seat pan left PERGAM.DUNKEL 1 09/1993 52108130673 $58.59 ENDED
06 Seat pan, right PERGAM.DUNKEL 1 09/1993 52108130674 $58.59 ENDED, +core
06 Seat pan left SCHWARZ 1 52108130667 $75.73 ENDED
06 Seat pan, right SCHWARZ 1 52108130668 $75.73 ENDED
06 Seat pan left GRAU 1 09/1993 52108166181 $75.73 ENDED
06 Seat pan, right GRAU 1 09/1993 52108166182 $75.73
06 Seat pan left BEIGE 1 09/1993 52108166183 $75.73 ENDED
06 Seat pan, right BEIGE 1 09/1993 52108166184 $75.73 ENDED
06 Seat pan left TUERKIS 1 09/1993 52108166185 $58.59 ENDED
06 Seat pan, right TUERKIS 1 09/1993 52108166186 $58.59 ENDED
06 Seat pan left KLASSISCHROT 1 09/1993 52108166187 $58.59 ENDED
06 Seat pan, right KLASSISCHROT 1 09/1993 52108166188 $58.59
06 Seat pan left SAFRANGELB 1 09/1993 52108166191 $57.20 ENDED
06 Seat pan, right SAFRANGELB 1 09/1993 52108166192 $57.20 ENDED
06 Seat pan left BLAUVIOLETT 1 09/1993 52108166193 $58.59 ENDED
06 Seat pan, right BLAUVIOLETT 1 09/1993 52108166194 $57.20 ENDED
06 Seat pan left HELLGRAU 1 09/1993 52108166347 $75.73 ENDED
06 Seat pan, right HELLGRAU 1 09/1993 52108166348 $75.73 ENDED
07 Backrest-cap SILBERGR.DUNKEL 2 09/1993 52108166277 $204.41 ENDED, +core
07 Backrest-cap ULTRAMARIN 2 09/1993 52108166278 $147.31 ENDED, +core
07 Backrest-cap PERGAM.DUNKEL 2 09/1993 52108166279 $147.31 ENDED, +core
07 Backrest-cap SCHWARZ 2 09/1994 52108166276 $219.01 ENDED
07 Backrest-cap GRAU 2 09/1993 09/1994 52108166234 $204.41 ENDED, +core
07 Backrest-cap BEIGE 2 09/1993 09/1994 52108166235 $211.23 ENDED, +core
07 Backrest-cap TUERKIS 2 09/1993 09/1994 52108166236 $147.31 ENDED
07 Backrest-cap KLASSISCHROT 2 09/1993 09/1994 52108166237 $147.31 ENDED
07 Backrest-cap HELLGRAU 2 09/1993 09/1994 52108166238 $219.01 ENDED
07 Backrest-cap BLAUVIOLETT 2 09/1993 09/1994 52108172872 $147.31 ENDED, +core
07 Backrest-cap SAFRANGELB 2 09/1993 09/1994 52108172873 $147.31 ENDED, +core
07 Rear panel SCHWARZ 2 09/1994 52108201675 $162.16 ENDED
07 Rear panel BEIGE 2 09/1994 52108201676 $152.89 ENDED
07 Rear panel GRAU 2 09/1994 52108201677 $156.72 ENDED, +core
07 Rear panel BLAUVIOLETT 2 09/1994 52108201678 $162.16 ENDED, +core
07 Rear panel HELLGRAU 2 09/1994 52108201679 $152.89 ENDED
08 Luggage net SCHWARZ 2 09/1994 52108167495 $72.33 +core
08 Luggage net GRAU 2 09/1994 52108167533 $72.33 ENDED, +core
08 Luggage net BEIGE 2 09/1994 52108167534 $72.33 +core
08 Luggage net TUERKIS 2 09/1994 52108167535 $55.80 ENDED, +core
08 Luggage net KLASSISCHROT 2 09/1994 52108167536 $54.68 ENDED, +core
08 Luggage net HELLGRAU 2 09/1994 52108167537 $74.50 ENDED, +core
08 Luggage net BLAUVIOLETT 2 09/1994 52108179963 $54.68 ENDED, +core
08 Luggage net SAFRANGELB 2 09/1994 52108179964 $55.80 ENDED, +core
08 Luggage net SCHWARZ 2 09/1994 52108202403 $59.29 ENDED
08 Luggage net SANDGRAU 2 09/1994 52108202404 $59.29 ENDED, +core
08 Luggage net GRAU 2 09/1994 52108202405 $59.29 ENDED
08 Luggage net HELLGRAU 2 09/1994 52108202406 $59.29 ENDED
08 Luggage net BEIGE 2 09/1994 52108202407 $59.29
08 Luggage net KLASSISCHROT 2 09/1994 52108202408 $59.29
08 Luggage net TUERKIS 2 09/1994 52108202409 $55.80 ENDED
08 Luggage net BLAUVIOLETT 2 09/1994 52108202410 $59.29
08 Luggage net SAFRANGELB 2 09/1994 52108202411 $55.80 ENDED
09 Screw M6X15,4 4 52108119276 $0.58
10 Clamp 4 52108130678 $0.23
11 Clamp 1,6X20X10,1 X 52101945543 $0.09
12 Clamp X 52108151454 $0.98
13 Screw 3,9X18 X 52108119279 $0.35
14 Backrest Shell covering SILBERGRAU 2 09/1993 52108130756 $5.80 ENDED
14 Backrest Shell covering ULTRAMARIN 2 09/1993 52108130757 $5.45 ENDED
14 Backrest Shell covering PERGAMENT 2 09/1993 52108130758 $5.45 ENDED
14 Backrest Shell covering SCHWARZ 2 52108130755 $5.45
14 Backrest Shell covering GRAU 2 09/1993 52108166254 $5.45 ENDED
14 Backrest Shell covering BEIGE 2 09/1993 52108166255 $5.45
14 Backrest Shell covering TUERKIS 2 09/1993 52108166256 $5.80 ENDED
14 Backrest Shell covering KLASSISCHROT 2 09/1993 52108166257 $5.80
14 Backrest Shell covering HELLGRAU 2 09/1993 52108166258 $5.45
14 Backrest Shell covering SAFRANGELB 2 09/1993 52108166259 $5.80
14 Backrest Shell covering BLAUVIOLETT 2 09/1993 52108166260 $5.80
15 Screw M6X15,4 X 52108119276 $0.58
16 Clip 8 52108151597 $0.23
17 Screw 3,9X18 4 52108119279 $0.35
18 Wave washer D=5,7 X 04/1999 61211350101 $0.20 ENDED
18 Axial securing clip 15X5,7MM X 07149158226
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
