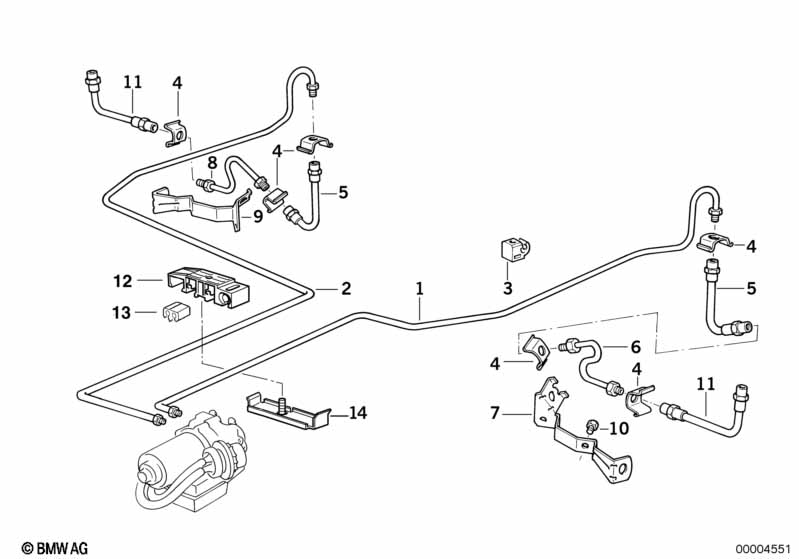

3' E36 323i Brake pipe rear ABS/ASC+T

Brake pipe rear ABS/ASC+T
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pipe M10/M10-3120MM 1 09/1996 34326755686 $17.08
01 Pipe M10/M12-3363MM 1 09/1996 34326752207 $79.82
01 Pipe M10/M12-3154MM 1 09/1996 34326755521 $17.08
02 Pipe M10/M12-3864MM 1 09/1996 34326755526 $30.00
02 Pipe M10/M10-3850MM 1 09/1996 34326755706 $17.08
03 Brake pipe bracket 5 34301165382 $0.90
04 Clip 6 34341163565 $0.97
04 Retaining spring f brake hose 2 12/1997 34306771981 $0.52
05 Brake hose rear 2 34321159524 $29.25
06 Pipe M10/M10-205MM 1 34326755550 $5.83
07 Bracket brake pipe left 1 12/1997 34321159935 $3.15
07 Brake pipe bracket 1 12/1997 34301164003 $4.00
08 Pipe M10/M10-205MM 1 34326755550 $5.83
09 Bracket brake pipe right 1 12/1997 34321159936 $3.15
09 Brake pipe bracket 1 12/1997 34301164003 $4.00
10 Hex bolt with washer M6X12-Z1 4 03/1999 07119915017 $0.36 ENDED
10 Hex bolt with washer M6X12-U1-8.8 4 07119904517 $0.36
11 Brake hose rear L=200MM 2 12/1997 34321159881 $30.11
11 Brake hose rear 2 12/1997 34301165174 $39.55
12 Tubing support 5-FACH 4 16121181908 $2.25
13 Rubber buffer 4 37131130202 $0.45
14 Fuel pipe bracket 4 16121181912 $2.17
Notes
  • ENDED = the part has been discontinued (no longer available).
