3' E36 328i Trailer, individual parts, plastic parts

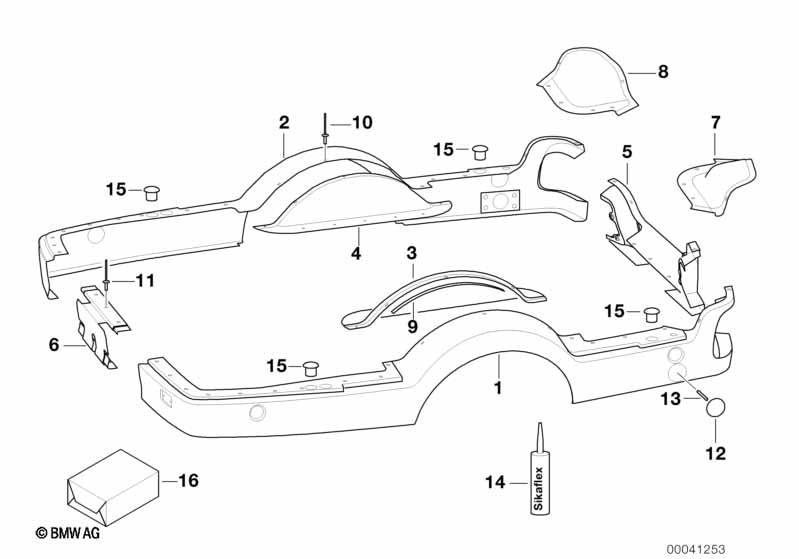

Trailer, individual parts, plastic parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Left apron US-VERSION 1 86190136989 $1060.20 ENDED
02 Right apron US-VERSION 1 86190136988 $1060.20 ENDED
03 Wheelhouse left 1 86199416695 $191.95 ENDED
04 Wheelhouse right 1 86199416694 $174.95 ENDED
05 Rear apron 1 86199416696 $535.68 ENDED, +core
06 Front apron 1 86199416697 ENDED, +core
07 Left lamp housing 1 86199416699 $168.52 ENDED, +core
08 Right lamp housing 1 86199416698 $168.52 ENDED, +core
09 Sealing tape 1,2M; 15X1MM 1 86199416783 ENDED
10 Blind rivet 4,8 X 15,5 MM X 86199416785 $1.33 ENDED
11 Blind rivet 4,8 X 26 MM X 86199416786 $0.69 ENDED
12 Primed jack fixture flap 2 51712234084 $7.44
13 Pin 2 51718108229 $0.50
14 Polyurethane sealing compound WEISS, 310 ML 1 07/2005 81229407313 $17.43 ENDED
14 Polyurethane sealant, white 310ML 1 07/2005 83190414598 ENDED
14 Polyurethane sealant, white 310ML 1 83192210419
15 Plug 4 86190004552 ENDED
16 Repair kit 1 86190004872 ENDED, +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
