3' E36 328i Intake manifold system

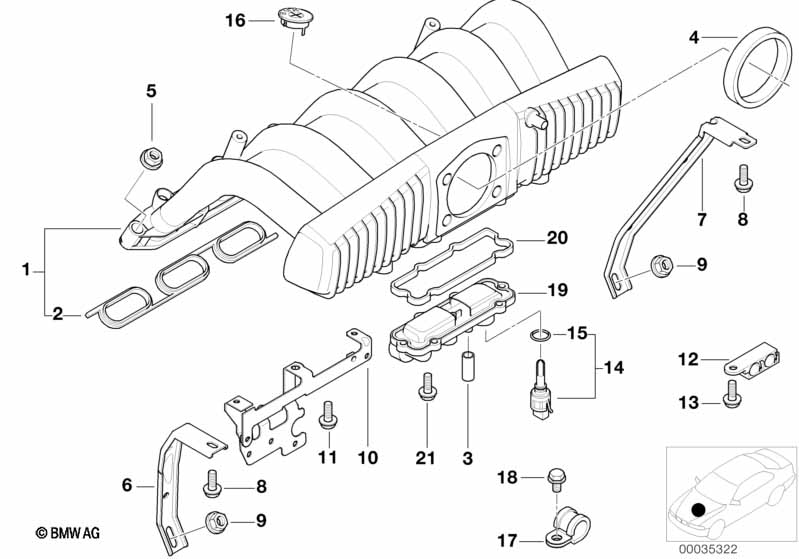

Intake manifold system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold 1 11611707027 $615.48 +core
02 Profile-gasket 2 11611740069 $18.02
03 Cap D=3,5MM 1 11611437560 $3.39
04 Profile-gasket 1 11611716174 $15.02
05 Hex nut with plate AM7 ZNNIV SI 7 07129905541 $0.64
06 Front intake manifold support 1 11611407066 $8.18
07 Rear intake manifold support 1 11611427354 $7.77
08 Hex bolt with washer M6X20 2 07119904527 $0.44
09 Collar nut M8 2 07119927022 $0.20
10 Universal holder 1 11611703780 $9.35
11 Hex bolt with washer M6X12-U1-8.8 2 07119904517 $0.36
12 Clip 1 13311722326 $1.73
13 Screw 1 11611740136 $0.75
14 Intake air temperature sensor 1 13621739510 $25.98
15 O-ring 8X3 1 13621743299 $1.25
16 Cover 1 12421427313 $0.98
19 Cover 1 11611703778 $22.17
20 Gasket 1 11611703779 $10.63
21 Screw 6 11611740136 $0.75
Notes
  • +core = plus core charge (possibility of a return of the old part)
