3' E36 328i Air condit.condenser and mounting parts

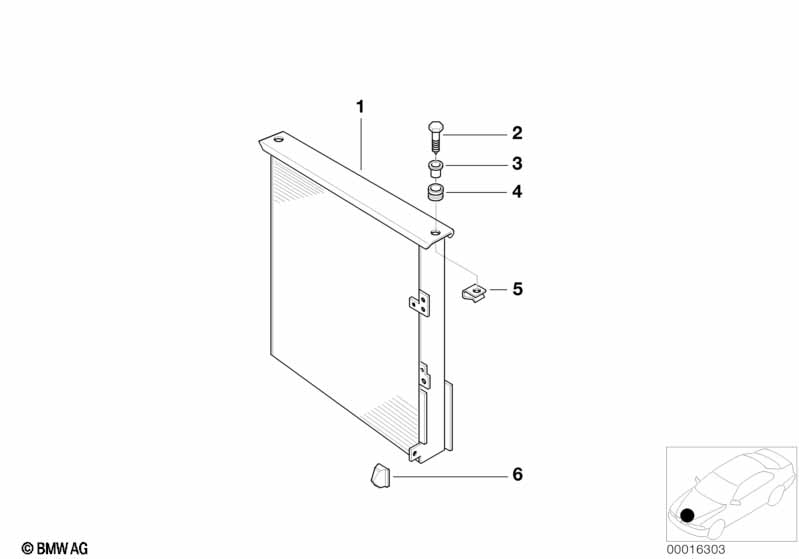

Air condit.condenser and mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Condenser air conditioning 1 09/1992 64538373004 $529.62
only in conjunction with
-- Sheet metal screw 6,3 X 26 2 09/1992 64538373922 $0.58
-- Hex head screw ST6,3X16-C-ZN 2 09/1992 07119916822 $0.20
02 Hex head screw ST6,3X45-C-Z2 2 09/1992 07119916848 $0.54
03 Spacer sleeve 2 09/1992 64538353083 $4.63
04 Grommet 2 09/1992 64538353084 $3.00
05 Body nut ST6,3-1-ZN 2 09/1992 07129925742 $0.25 ENDED
05 Body nut ST6,3-1 2 09/1992 09/1999 07129901663 $0.20 ENDED
05 Body nut ST6,3-1-ZNS3 2 09/1992 07129904231
06 Grommet 2 64538391412 $5.37
Notes
  • ENDED = the part has been discontinued (no longer available).
