3' E36 328i Air cond.compressor-supporting bracket

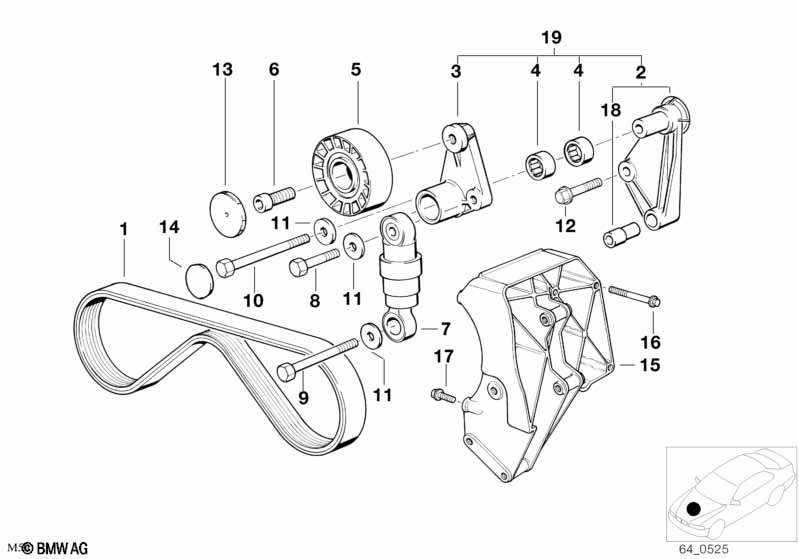

Air cond.compressor-supporting bracket
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ribbed v-belt 5PK 906 1 09/1998 11281437873 $26.28 ENDED
01 Ribbed v-belt 5PK 906 1 11281437449
02 Base plate with drop arm 1 01/1996 11281433632 $119.71
04 Needle sleeve 2 01/1996 12311713153 $18.45
05 Adjusting pulley 1 01/1996 11281748131 $45.97
05 Adjusting pulley 1 11281748131 $45.97
06 Fillister-head screw M10X22 1 07119901979 $1.98
07 Belt tensioner 1 11281717210 $112.15
08 Hex bolt M8X35 4 07119913676 $0.36
09 Hex bolt M8X75 1 09/1999 07119912553 $2.42 ENDED
09 Hex bolt M8X75-8.8-ZNS3 1 07119906028
10 Hex bolt with washer M8X85-U1-8.8 1 07119906141 $1.89
11 Washer 3 09/1998 11287835130 $0.72
11 Washer 3 11287835130 $0.72
12 Hex bolt with washer M8X40-Z3 1 07119915088 $0.41
13 Protection cap adjusting pulley 1 11281727159 $2.37
14 Protection cap 1 12311713143 $0.42
15 Climate compressor supporting bracket 1 64551730768 $86.37
16 Hex bolt with washer M8X90-Z3 4 07119913103 $0.76
17 Hex bolt with washer M8X30-Z1 1 09/2000 07119915117 $0.47 ENDED
17 Hex bolt M8X30-Z1-10.9 1 07119904137 $0.89
19 Base plate with drop arm 1 11281433632 $119.71
Notes
  • ENDED = the part has been discontinued (no longer available).
