3' E36 328i Expansion tank/tubing/pressure sensor

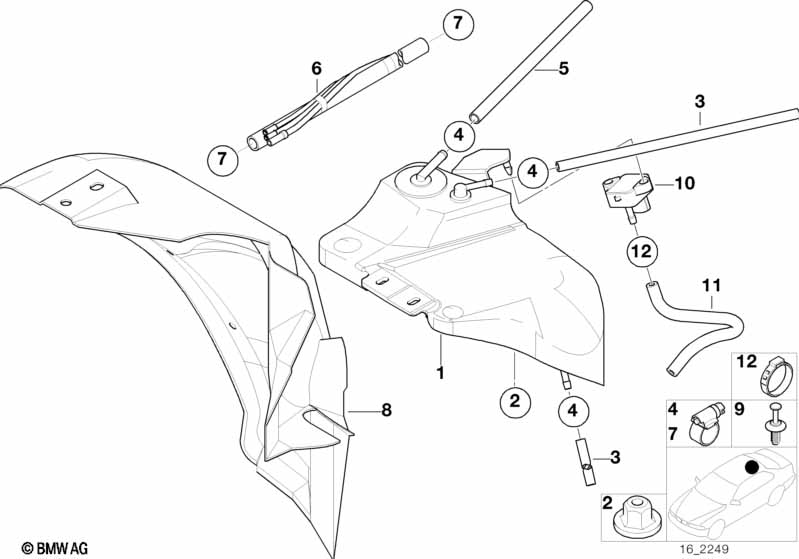

Expansion tank/tubing/pressure sensor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Expansion tank OBD II 1 16131183056 $92.35 +core
02 Plastic nut 3 51711958025 $0.26
03 Fuel hose E6X11MM/FPM X 16127175977 $28.20
04 Hose clamp L12-15 X 07129952104 $1.18
05 Fuel hose 8X13MMX1000 X 13537563456 $44.77
06 Vent pipe RUNNING LOSS 1 16111182814 $91.18 ENDED
07 Hose clamp L16-30 4 64218367179 $1.07
08 Stone-chip guard 1 16132227852 $26.33
09 Expanding rivet D = 6MM 3 51111908077 $0.30
10 Fuel tank pressure sensor 1 16141182581 $146.63
11 Pressure hose assy OBD-2 1 16141183148 $29.13
12 Hose clamp D=10,8-13,3 2 32411156956 $0.62
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
