3' E36 323i Fuel injection system/Injection valve

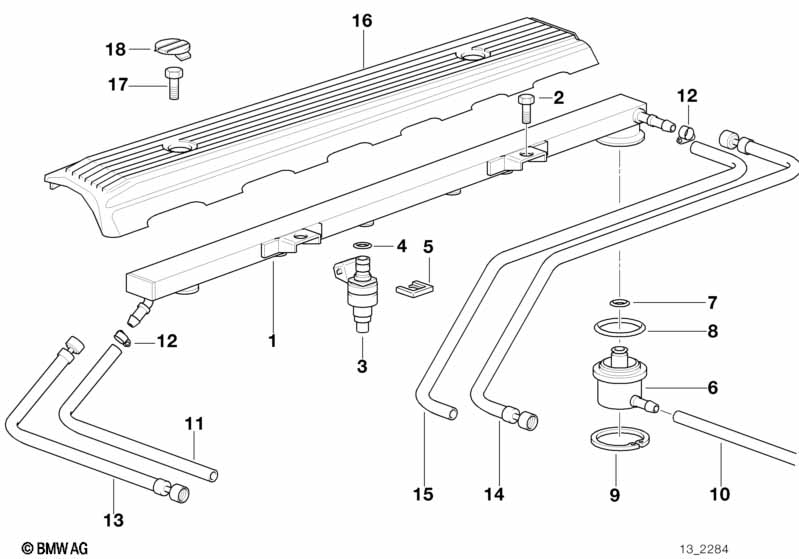

Fuel injection system/Injection valve
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Injection tube 1 09/1995 13531740111
01 Injection tube 1 09/1995 13531436469 +core
02 Hex bolt with washer M6X12-Z1 2 08/1998 07119915017 $0.36 ENDED
02 Hex bolt with washer M6X12-U1-8.8 2 07119904517 $0.36
03 Injection valve BOSCH 6 13641730060 $122.42
04 O-ring 7,52X3,53 6 13641730767 $3.75
05 Clamp 6 13531274729 $0.67
06 Pressure regulator 1 13531436110 $75.10
07 O-ring 5X1,5 1 13531720252 $3.75
08 O-ring 20X2,5 1 13531720251 $4.38
09 Lock Ring 1 13531736234 $2.12
10 Vacuum hose black 3,5X1,8 X 11727545323 $14.82
11 Kit for fuel hose and clamp 660MM/FPM 1 09/1995 13311744275 $41.65
12 Hose clamp L12-15 4 09/1995 07129952104 $1.18
13 Inlet fuel hose 1 09/1995 13311427638 $45.38 +core
14 Kit for fuel hose and clamp 660MM/FPM 1 09/1995 13311744276 $41.65
15 Retour fuel hose 1 09/1995 13311427637 $45.38 +core
16 Cover 1 13541740160 $22.98
17 Hex bolt with washer M6X20-Z3 2 07119915031 $0.24
18 Cap 2 11121726089 $2.12
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
