3' E36 323i Engine Suspension

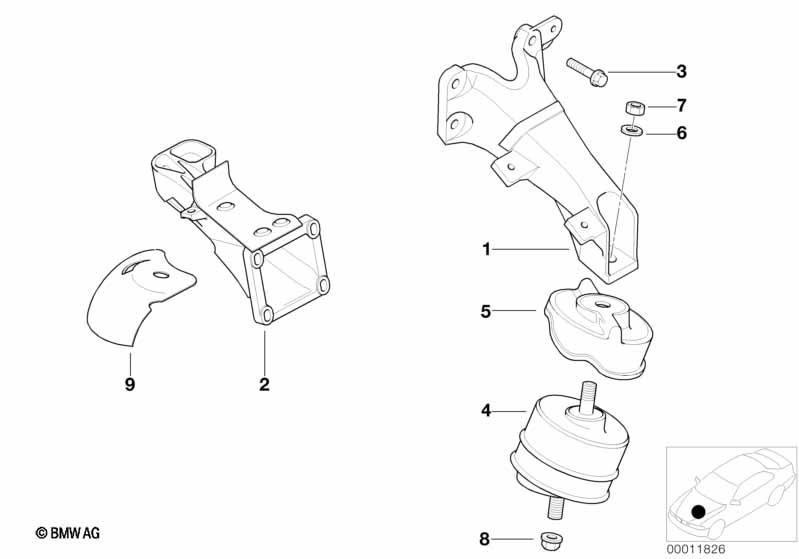

Engine Suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting bracket left 1 11811141137 $32.77
02 Supporting bracket right 1 11811138249 $82.14
03 Hex bolt with washer M8X26-Z1-ZN 8 09/1999 07119901314 $0.47 ENDED
03 Hex bolt with washer M8X26-Z1-ZNS3 8 07119902919 $0.53
03 Hex bolt with washer M8X34-ZA-Z1 8 07119900728 $0.62
04 Rubber mounting left 1 03/1996 11811141735 $48.62
04 Rubber mounting right 1 03/1996 11811141736 $48.62
04 Rubber Mounting 2 03/1996 09/1999 22111095444 $61.67 ENDED
04 Rubber Mounting 2 03/1996 09/1999 22111095444 $61.67 ENDED
only in conjunction with
-- Heat Protection Plate Right 1 03/1996 09/1999 11811137776 $4.91
05 Stopper engine bearing 2 03/1996 11811141737 $9.63
06 Washer A10,5 2 07119931096 $0.22
07 Hex nut M10 2 09/1999 07119922826 $0.20 ENDED
07 Hex nut M10 2 07119907088
08 Hex nut AM10-8-ZNS3 2 09/1999 07129904864 $0.87 ENDED
08 Hex nut AM10-10-ZNS3 2 07129904865 $1.00
Notes
  • ENDED = the part has been discontinued (no longer available).
