3' E46 M3 Retrofit kit M aerodyn. package

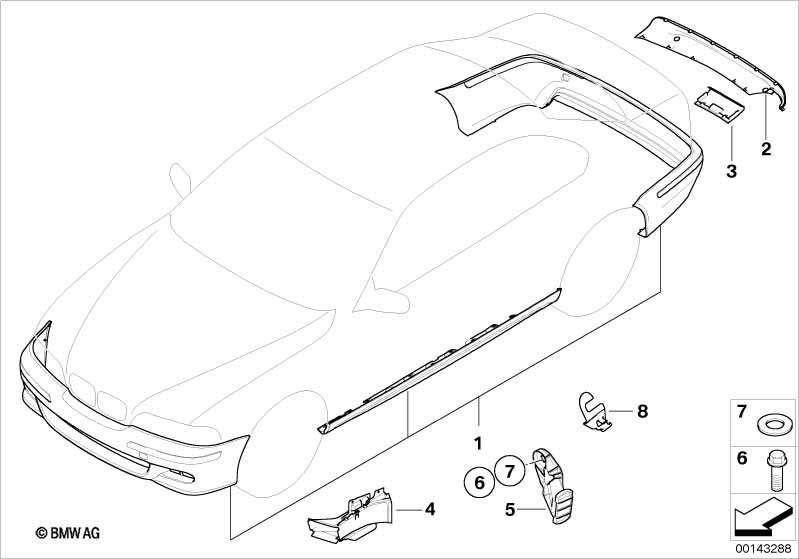

Retrofit kit M aerodyn. package
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i not in connection with BMW independent
park heating
The retrofit kits specified below are
only basic sets. These must be
supplemented with the additional items
on this ITU depending on the vehicle
concerned.
Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
additionally required parts:
05 Support fender left 1 03/2003 51118195295 $5.28
05 Support fender right 1 03/2003 51118195296 $5.28
06 Hex bolt M6X18 ZNS 4 03/2003 08/2006 07119901509 $0.38 ENDED
06 Hex bolt with washer M6X18-U2-ZNS3 4 03/2003 07119902933
07 Washer 8,4 4 03/2003 03/2006 07119936441 $0.78 ENDED
07 Washer 8,4X24X2-ZNS3 4 03/2003 07119904164 $0.40
08 Left bracket 1 03/2003 51127000361 $1.05
08 Right bracket 1 03/2003 51127000362 $1.02
Notes
  • ENDED = the part has been discontinued (no longer available).
