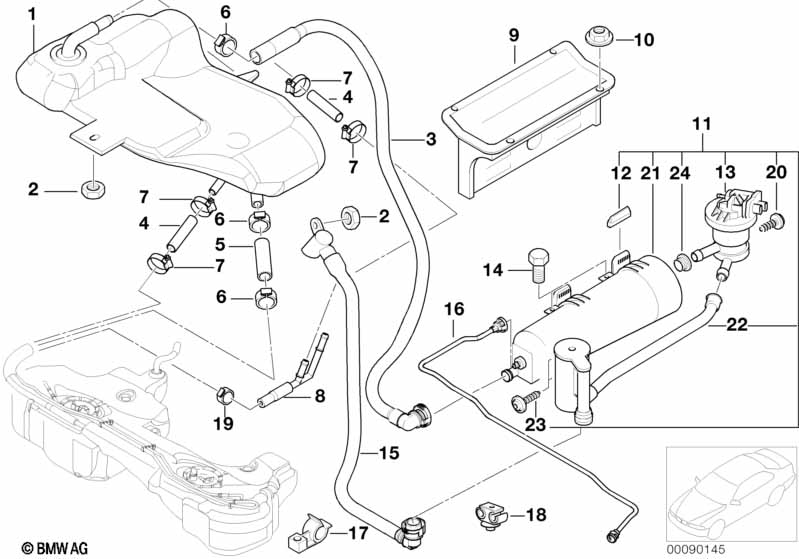

3' E46 M3 Exp.tank/activated Carbon container

Exp.tank/activated Carbon container
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Expansion tank 1 16136752641 $102.47
02 Plastic nut 2 51711958025 $0.26
03 Vent pipe 1 16132283286 $50.70
04 Fuel hose 8X13MMX1000 X 13537563456 $44.77
05 Fuel hose 18X24X80 1 16116772292 $10.13
06 Hose clamp 23,9-27,1 3 11631716970 $0.79
07 Hose clamp 12,8-15,3 X 16121180240 $0.77
08 Distribution piece 1 16137177237 $31.92 +core
09 holder for activated charcoal filter 1 16132229735 $74.32
10 Self-locking hex nut M6 4 07147153450 $0.47
11 Activated Charcoal Filter 1 16136751759 $290.92 ENDED
12 Cap 2 16131183918 $3.32
13 Leak diagnosis pump 1 09/2001 16137193479 $112.36
14 Hex bolt with washer M6X23 2 07119905591 $0.29
15 Vent pipe 1 16132229415 $30.47
16 Scavenging line rear 1 16132229417 $15.25
17 Cable clip D18 3 16131183931 $1.08
18 Pipe clip 1 16121179396 $1.08
19 Hose clamp D=10,8-13,3 1 32411156956 $0.62
20 screw for plastic TS5X12-ZNS3 3 07147194471 $0.34
21 Activated Charcoal Filter 1 16131183906 $272.47
22 Dust filter 1 16136751758 $53.12
23 Screw TS 5X16 2 16131184527 $0.58
24 Sealing grommet 1 16131183912 $2.08
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
