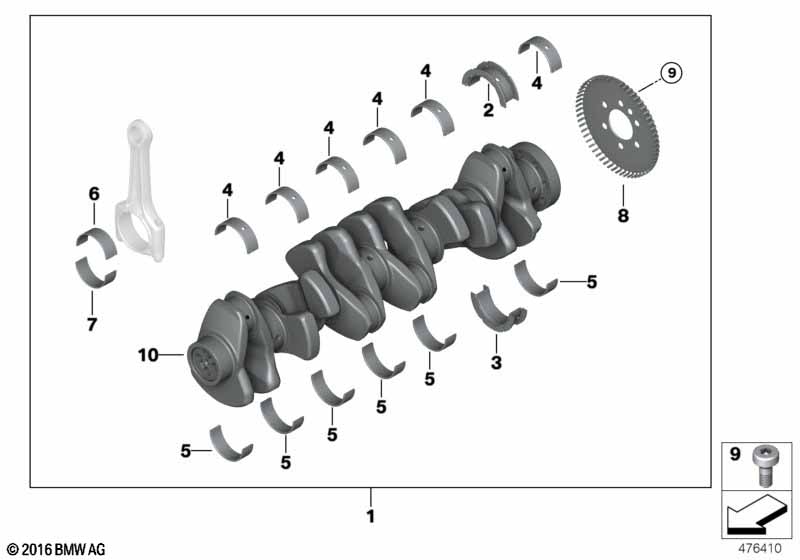

3' E46 M3 Crankshaft with bearing shells
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-crankshaft with bearing shells | 1 | 08/2008 | 11210304427 | $2384.97 | ENDED | |||
| 01 | Crankshaft without bearing shells | S54 | 1 | 11217832125 | |||||
| 02 | Guide-bearing Shell yellow | 60,00MM(0) | 1 | 11211706829 | $27.36 | ||||
| 02 | Guide-bearing Shell green | 60,00MM(0) | 1 | 11211706830 | $27.36 | ||||
| 02 | Guide-bearing Shell white | 60,00MM(0) | 1 | 11211706831 | $27.36 | ||||
| 02 | Guide-bearing Shell yellow | 59,75MM(+0,25) | 1 | 11211706832 | $37.98 | ||||
| 02 | Guide-bearing Shell green | 59,75MM(+0,25) | 1 | 11211706833 | $37.98 | ||||
| 02 | Guide-bearing Shell white | 59,75MM(+0,25) | 1 | 11211706834 | $37.98 | ||||
| 03 | Guide-bearing Shell yellow | 60,00MM(0) | 1 | 11212241934 | $27.36 | ||||
| 03 | Guide-bearing Shell green | 60,00MM(0) | 1 | 11212241935 | $27.36 | ||||
| 03 | Guide-bearing Shell white | 60,00MM(0) | 1 | 11212241936 | $27.36 | ||||
| 03 | Guide-bearing Shell yellow | 59,75MM(+0,25) | 1 | 11212241937 | $37.98 | ||||
| 03 | Guide-bearing Shell green | 59,75MM(+0,25) | 1 | 11212241938 | $37.98 | ||||
| 03 | Guide-bearing Shell white | 59,75MM(+0,25) | 1 | 11212241939 | $37.98 | ||||
| 04 | Bearing shell yellow | 60,00MM(0) | 6 | 11211706847 | $16.27 | ||||
| 04 | Bearing shell green | 60,00MM(0) | 6 | 11211706848 | $16.27 | ||||
| 04 | Bearing shell white | 60,00MM(0) | 6 | 11211706849 | $16.27 | ||||
| 04 | Bearing shell yellow | 59,75MM(+0,25) | 6 | 11211706850 | $16.10 | ||||
| 04 | Bearing shell green | 59,75MM(+0,25) | 6 | 11211706851 | $15.88 | ||||
| 04 | Bearing shell white | 59,75MM(+0,25) | 6 | 11211706852 | $15.88 | ||||
| 05 | Bearing shell yellow | 60,00MM(0) | 6 | 11211717526 | $16.27 | ||||
| 05 | Bearing shell green | 60,00MM(0) | 6 | 11211717527 | $16.27 | ||||
| 05 | Bearing shell white | 60,00MM(0) | 6 | 11211717528 | $16.27 | ||||
| 05 | Bearing shell yellow | 59,75MM(+0,25) | 6 | 11211717779 | $16.10 | ||||
| 05 | Bearing shell green | 59,75MM(+0,25) | 6 | 11211717780 | $15.88 | ||||
| 05 | Bearing shell white | 59,75MM(+0,25) | 6 | 11211717781 | $15.88 | ||||
| 06 | Bearing shell, blue | 49,00MM(0) | 6 | 11247835440 | $16.49 | ||||
| 06 | Bearing shell, blue | 48,75MM(+0,25) | 6 | 11247835452 | $16.71 | ||||
| 07 | Bearing shell, red | 49,00MM(0) | 6 | 11247835439 | $16.49 | ||||
| 07 | Bearing shell, red | 48,75MM(+0,25) | 6 | 11247835451 | $16.71 | ||||
| 08 | Impulse sending wheel | 1 | 11217831524 | $86.17 | +core | ||||
| 09 | Lock bolt | 3 | 11211739272 | $0.38 | |||||
| 10 | Crankshaft without bearing shells | S54 | 1 | 11217832125 |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
