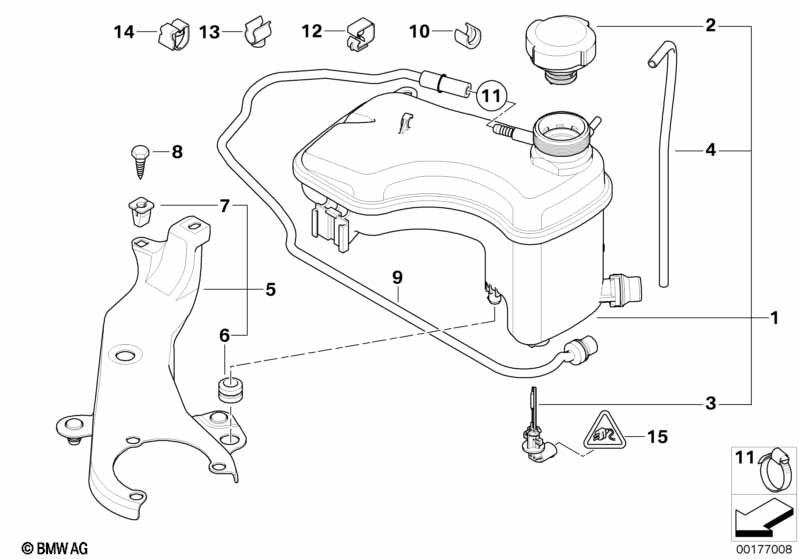

3' E46 M3 Expansion tank/tubing

Expansion tank/tubing
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Expansion tank 1 17112283344 $79.43
02 Radiator cap 2,0BAR 1 17117639022
03 Level switch, coolant 1 17137553919 $17.42
04 Hose L=500MM 1 17222246036 $1.98
05 Holder 1 17112229108 $34.82 +core
06 Grommet 2 17112229059 $1.97
07 Expanding nut ST 6.3 1 64121379221 $0.60
08 Sheet metal screw 6,3 X 22 2 07119901587 $0.38
09 Connecting line 1 17112229053 $84.06
10 Cap 1 17121719356 $0.43
11 Hose clamp L12-14,5 1 32411712735 $0.62
12 Cable clip 2 61102492990 $0.70
13 Tubing support 2 17112228439 $0.50
14 Tubing support 3 04/2002 61138350827 $0.38
15 Rep. kit for socket housing 2 POL. 1 61132359999
only in conjunction with
-- Contact bushing MQS ELA with cable 0,5-0,75 MM² AG 2 61130056384
-- Contact bushing MQS ELA with cable 0,35-0,5 MM² AG 2 61130056961
Notes
  • +core = plus core charge (possibility of a return of the old part)
