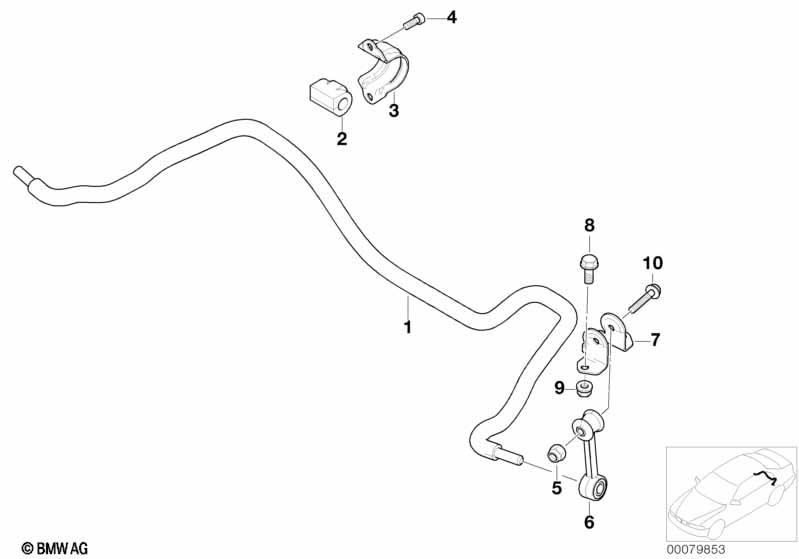

3' E46 M3 Stabilizer, rear

Stabilizer, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Stabilizer, rear D=21,5MM 1 33552282181 $190.20 +core
02 Stabilizer rubber mounting D=21,5MM 2 31352229711 $11.13
Required for repair
-- Installation tool 250ML 2 83192405829
03 Stabilizer support 2 33556780707 $2.22
04 Fillister-head screw M8X16-8.8-ZNS3 4 07119904101 $0.29
05 Self-locking hex nut M8 2 07/2004 07129964655 $0.25
06 Stabilizer link 2 33552283743 $22.15
Required for repair
-- Self-locking collar nut M8-10 ZNS3 4 07119905374
07 Swing support bracket 2 33556782120 $2.63
08 Hexagon collar screw M8X22-8.8 ZNS3 4 33326760669 $0.64
09 Self-locking collar nut M8-10 ZNS3 4 07119905374
10 Hex bolt M8X43-8.8-ZNS3 2 07119903076 $0.71
Notes
  • +core = plus core charge (possibility of a return of the old part)
