3' E46 M3 Power brake unit depression

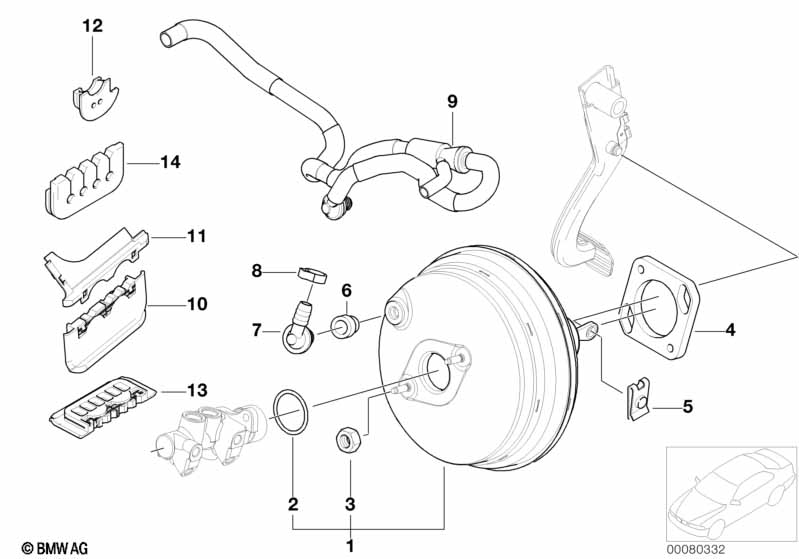

Power brake unit depression
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i VACUUM PIPE
REFER TO MAIN GROUP 11
01 Brake servo unit 1 09/2002 34332282193 $451.10
only in conjunction with
-- Self-locking collar nut M8-10 ZNS3 2 09/2002 07119905374
02 Brake master cylinder o-ring 1 34311165092 $3.15
03 Self-locking hex nut M8-8-ZNNI SI 2 07129906196 $1.60
04 Gasket D=70MM 1 35111165132 $3.10
05 Fuse B10-ZNS3 1 07129904567 $0.40
06 Gasket ring 1 09/2002 34331158929 $3.15
07 Check valve support 1 34331161300 $9.38
08 Clamp 1 11151726340 $1.07
09 Sucking jet pump with lines 1 09/2002 11617831663 $80.42 +core
10 Rubber grommet 1 34301164314 $2.75
11 Seal, upper part 1 34301164316 $0.90
12 Rubber grommet 1 34301165409 $2.15
14 Rubber grommet 1 34306750118 $6.60
Notes
  • +core = plus core charge (possibility of a return of the old part)
