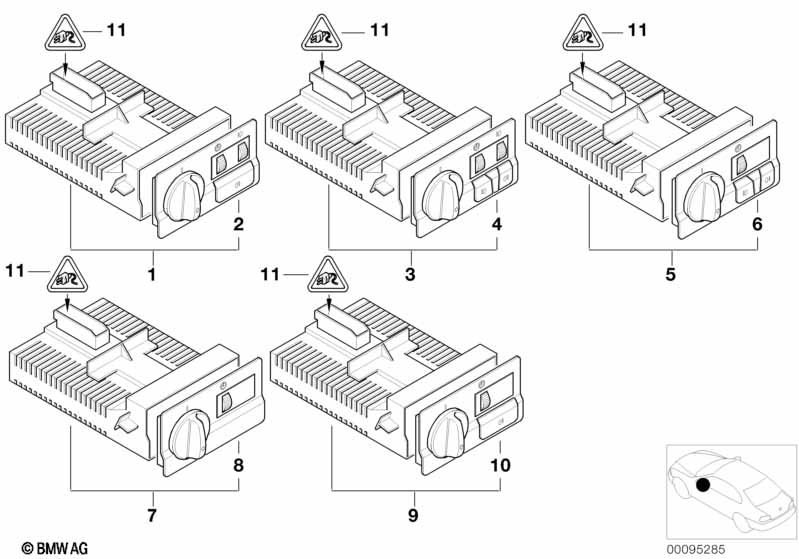

3' E46 M3 Switch unit, light
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Xenon Light and Fog lights |
S522A=No =No |
||||||||
| 07 | Switch unit, light | 1 | 09/2001 | 61319133022 | $384.76 | ||||
| 08 | control, switch unit for lights | 1 | 09/2001 | 61318378577 | $128.25 | ||||
| For vehicles with Xenon Light and Adaptive Headlights and Fog lights |
S522A=No S524A=No =Yes |
||||||||
| 09 | Switch unit, light / foglamps | 1 | 09/2001 | 61319133024 | $384.76 | ||||
| For vehicles with Xenon Light and Adaptive Headlights and Fog lights |
S522A=Yes S524A=No =Yes |
||||||||
| 09 | Switch unit, light / foglamps | 1 | 09/2001 | 61319133026 | $384.76 | ||||
| For vehicles with Adaptive Headlights and Fog lights |
S524A=No =Yes |
||||||||
| 10 | Contr.pan.sw.unit light/front fog lamp | 1 | 09/2001 | 61318378576 | $128.25 | ||||
| 11 | Covering cap | 1 | 08/2006 | 61138364872 | $2.93 | ENDED | |||
| only in conjunction with | |||||||||
| 11 | Covering cap | 1 | 08/2006 | 61138369664 | ENDED | ||||
| only in conjunction with | |||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 4 | 08/2006 | 61130056965 | ||||
| -- | Socket housing | 54 POL. | 1 | 08/2006 | 61138364826 | $1.00 | |||
| -- | Socket housing | 54 POL. | 1 | 08/2006 | 61138364828 | $1.00 | |||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 4 | 08/2006 | 61138369634 | $0.55 | |||
| -- | Socket contact ELO-Power 5,2x0,63 | 4 MM² | 2 | 08/2006 | 61138369644 | $0.63 | |||
| -- | Socket terminal MQS | 0.2-0.5MM²/SN | X | 08/2006 | 61138369696 | $0.28 | |||
| -- | Socket terminal MQS | 0.75 MM² /SN | X | 08/2006 | 61138369700 | $0.35 | |||
| 11 | Covering cap | 54-POL | 1 | 61139253106 | |||||
| only in conjunction with | |||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 4 | 61130056965 | |||||
| -- | Socket housing | 54 POL. | 1 | 61138364826 | $1.00 | ||||
| -- | Socket housing | 54 POL. | 1 | 61138364828 | $1.00 | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 4 | 61138369634 | $0.55 | ||||
| -- | Socket contact ELO-Power 5,2x0,63 | 4 MM² | 2 | 61138369644 | $0.63 | ||||
| -- | Socket terminal MQS | 0.2-0.5MM²/SN | X | 61138369696 | $0.28 | ||||
| -- | Socket terminal MQS | 0.75 MM² /SN | X | 61138369700 | $0.35 | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
