3' E46 M3 on board monitor / TV amplifier
Sponsored links
Sponsored links

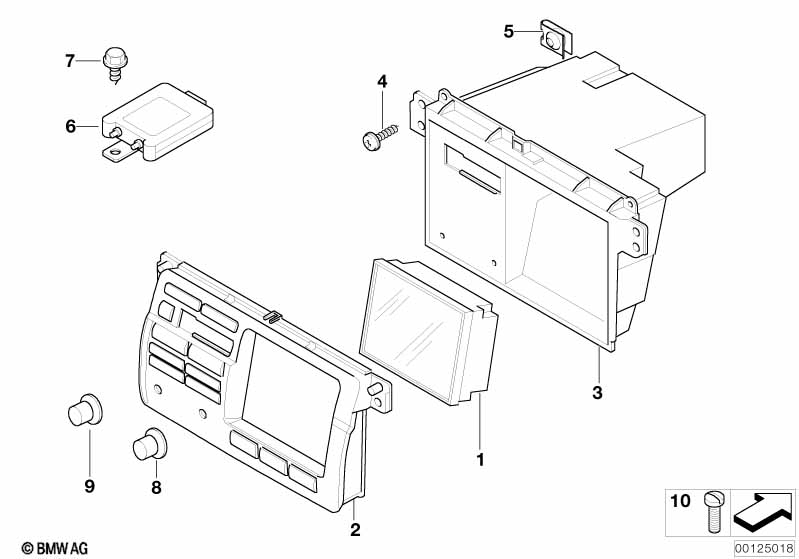

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Display | 1 | 09/2001 | 65528375869 | $1772.48 | ENDED | |||
| 01 | Exch. LC display | 1 | 09/2001 | 65528380951 | $1371.11 | ||||
| 02 | On board monitor cover | 1 | 03/1999 | 09/2001 | 65528383339 | $388.53 | ENDED | ||
| For vehicles with Radio control Oceania |
S825A=Yes |
||||||||
| 02 | On board monitor cover | 1 | 03/1999 | 09/2001 | 65528383341 | $311.36 | ENDED, +core | ||
| For vehicles with National version japan |
L807A=Yes |
||||||||
| 02 | On board monitor cover | 1 | 03/1999 | 09/2001 | 65528383343 | $311.36 | ENDED, +core | ||
| 03 | Housing with cassette drive | 1 | 03/1999 | 09/2001 | 65528383345 | $726.97 | ENDED | ||
| 04 | Fillister head self-tapping screw | ST4,2X19-Z2 | 2 | 09/2001 | 07119907809 | $0.13 | ENDED | ||
| 05 | Body nut | 2 | 09/2001 | 51451949950 | $0.34 | ENDED | |||
| 05 | C-clip nut | 2 | 09/2001 | 07146988451 | $0.36 | ||||
| 06 | TV amplifier | 1 | 09/2001 | 65258368210 | $242.75 | ||||
| 07 | Sheet metal screw | 1 | 09/2001 | 65258375416 | $0.23 | ENDED | |||
| 07 | Sheet metal screw | ISA M5X12 | 1 | 09/2001 | 07146961863 | $0.25 | |||
| 07 | Sheet metal screw | ISA M5X12 | 1 | 09/2001 | 07149158177 | $0.25 | |||
| 08 | Rotary knob on-board monitor, menu | 1 | 09/2001 | 65528384681 | $10.69 | ||||
| 09 | Rotary knob on-board monitor, radio | 1 | 09/2001 | 65528384682 | $10.69 | ||||
| 10 | Countersunk screw | M3X8-4.8-H-ZNFE | 4 | 09/2001 | 07119904046 | $0.11 | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
