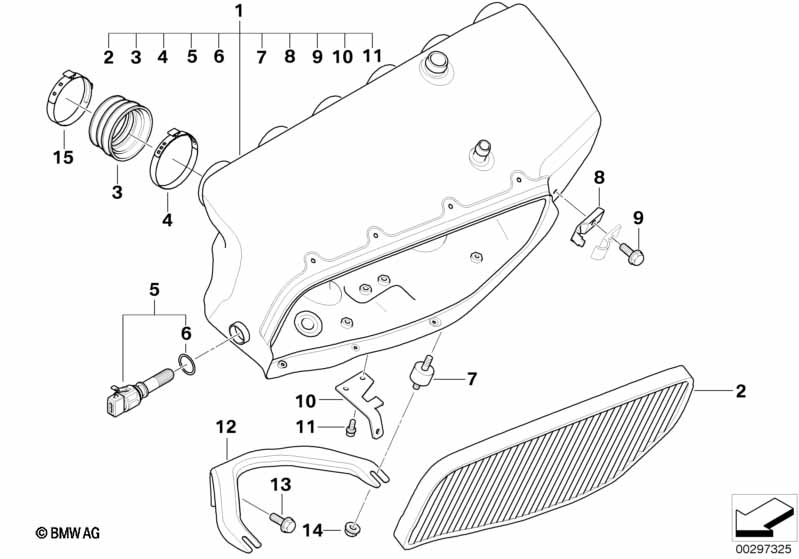

3' E46 M3 CSL Intake unit / filter element

Intake unit / filter element
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Important!
See information in the TI-column.
01 Air collector 1 11617833496 $4159.58 +core
only in conjunction with
-- Cable guide 1 11617836338 $4.19
02 Air filter element 1 13727838625 $128.73
03 Hose 6 11617830265 $16.95
04 Hose clamp 6 11617830306 $3.18
05 Intake air temperature sensor 1 13621739510 $25.98
06 O-ring 8X3 1 13621743299 $1.25
07 Rubber Mounting 2 11617830735 $7.60
08 Starter cable bracket 1 11617835163
only in conjunction with
-- Cable guide 1 11617836338 $4.19
09 Hex bolt with washer M6X14U2-ZNNIVSI 1 07119905952 $0.91
10 Bracket ventilation valve 1 11617833656
11 ISA screw M6X12 1 07129904831 $1.20
12 Holder 1 11617831740 $8.97
13 Hex bolt with washer M8X16 1 07119905528 $0.62
14 Hex nut M6-8-ZNNIV SI 2 07119905544 $0.64
15 Muffler clamp D=63MM 6 11617831745 $1.70
Notes
  • +core = plus core charge (possibility of a return of the old part)
