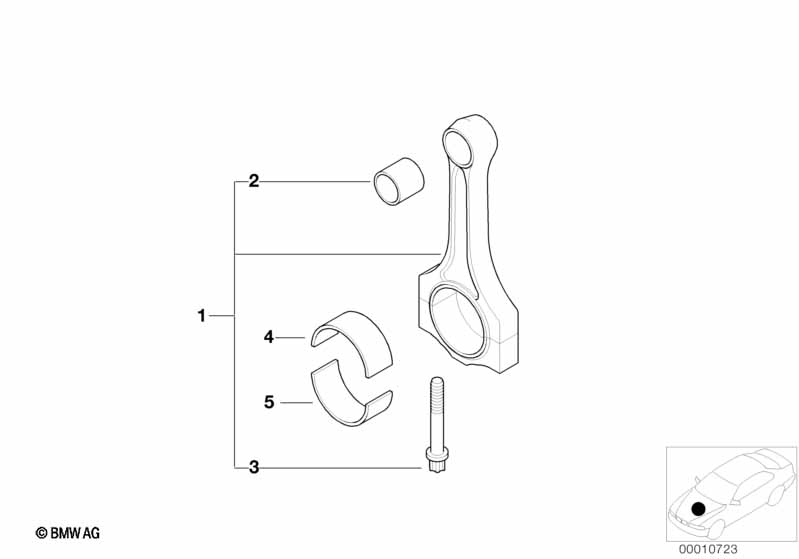

3' E46 320Ci Crankshaft Connecting Rod
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of cracked connecting rods | 1 | 11241437212 | $232.43 | +core | ||||
| 02 | Connecting rod bush | 6 | 11241278209 | $7.06 | |||||
| 03 | Connecting rod bolt | L=44MM | 12 | 11241739729 | |||||
| 04 | Bearing shell, blue | 45,00MM(0) | 6 | 11241284850 | $15.98 | ||||
| 04 | Bearing shell, blue | 44,75MM(+0,25) | 6 | 11241284852 | $21.31 | ||||
| 04 | Bearing shell, blue | 44,50MM(+0,50) | 6 | 11241284854 | $21.31 | ||||
| 05 | Bearing shell, red | 45,00MM(0) | 6 | 11241284849 | $16.49 | ||||
| 05 | Bearing shell, red | 44,75MM(+0,25) | 6 | 11241284851 | $13.27 | ||||
| 05 | Bearing shell, red | 44,50MM(+0,50) | 6 | 11241284853 | $13.27 |
Notes
- +core = plus core charge (possibility of a return of the old part)
