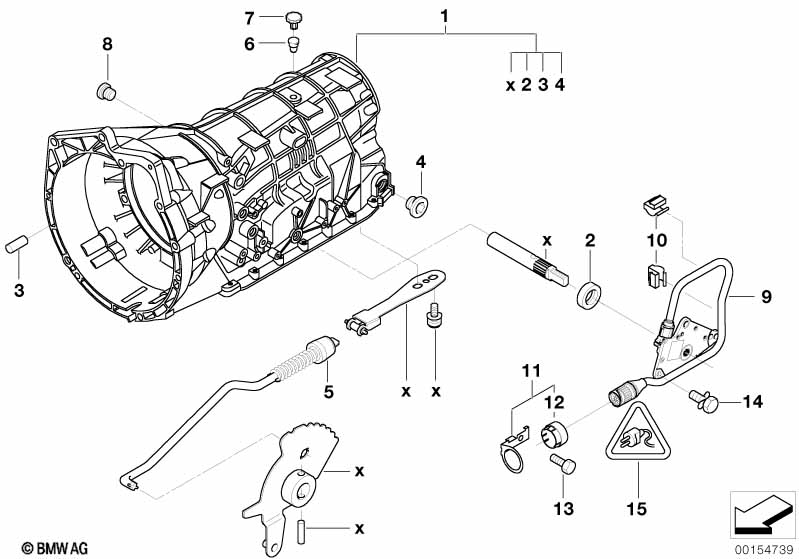

3' E46 320Ci A5s325z housing with mounting parts
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Parts marked with an X are not available as single part |
||||||||
| 01 | Transmission housing | 1 | 03/2005 | 24101424704 | $1123.06 | +core | |||
| 02 | Shaft seal | 10X18X5 | 1 | 03/2005 | 24147571213 | $5.20 | |||
| 03 | Dowel pin | 8M6X24 | 1 | 03/2005 | 24411218031 | $2.38 | |||
| 04 | Screw Plug With Gasket Ring | M18X1,5 | 1 | 03/2005 | 24117552349 | $7.65 | |||
| 05 | Connection rod | 1 | 03/2005 | 24521423367 | $16.32 | ||||
| 06 | Vent pipe | 1 | 03/2005 | 24101422141 | $5.93 | ||||
| 07 | Vent cover | 1 | 03/2005 | 24101422142 | $1.95 | ||||
| 08 | Screw Plug With Gasket Ring | M10X1 | 1 | 03/2005 | 24117552351 | $4.60 | |||
| 09 | Position switch | 1 | 03/2005 | 24107507818 | $288.45 | +core | |||
| 10 | Cable clamp | 2 | 03/2005 | 24101421795 | $0.85 | ||||
| 11 | Bracket | 1 | 03/2005 | 24101423285 | $6.05 | ||||
| 12 | Connecting sleeve | 1 | 03/2005 | 24101423242 | $1.68 | ||||
| 13 | Hex bolt | M8X16 | 1 | 03/2005 | 24101423379 | $5.20 | |||
| 14 | Hex bolt | M6X20 | 2 | 03/2005 | 24101421422 | $1.87 | |||
| 15 | Plug housing | 10-POL | 1 | 03/2005 | 12521740615 | $5.52 | |||
| only in conjunction with | |||||||||
| -- | Grommet | 1 | 03/2005 | 12521703522 | $3.37 | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
