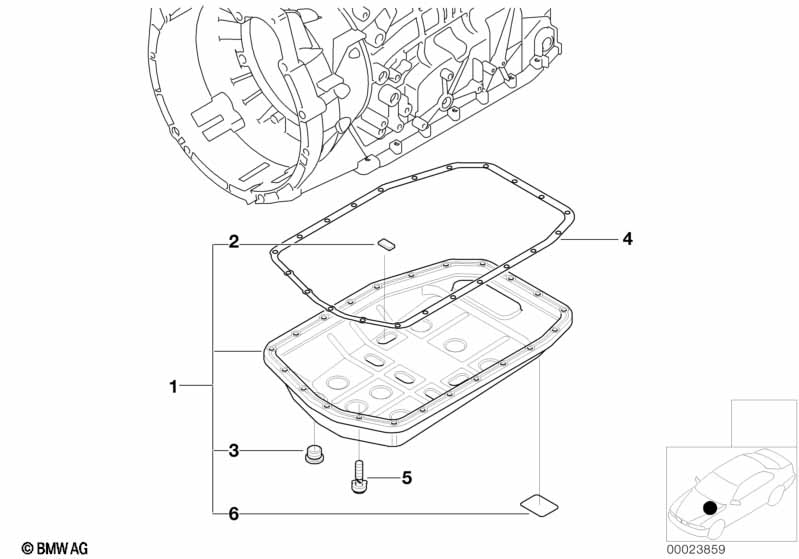

3' E46 320Ci A5S325Z oil pan
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 03/2005 | 24117507556 | $79.98 | ||||
| 02 | Magnet | 8 | 03/2005 | 24111206468 | $4.62 | ||||
| 03 | Screw plug | M14X1,5 | 1 | 03/2005 | 24117507555 | $8.60 | |||
| 04 | Gasket | 1 | 03/2005 | 24101423380 | $16.97 | ||||
| 05 | Torx bolt | M6X22 | 22 | 03/2005 | 24101423273 | $1.68 | |||
| 06 | Stick-on label | 1 | 03/2005 | 24111423619 | $3.98 |
