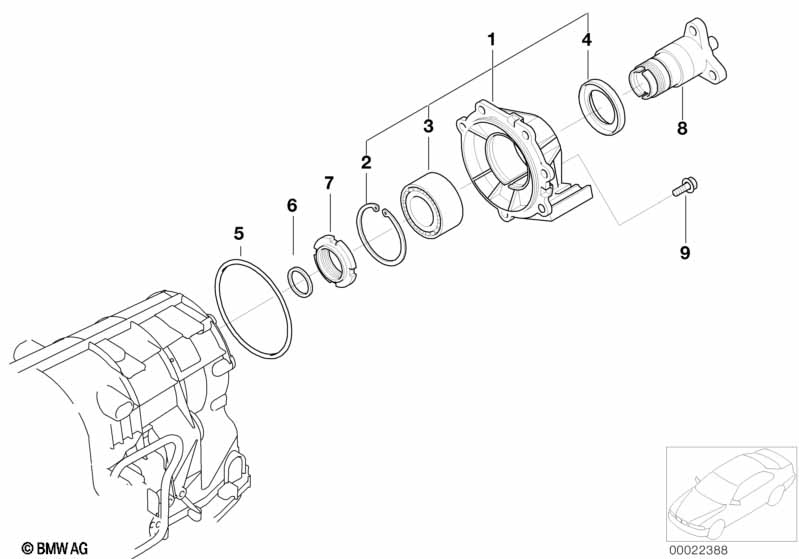

3' E46 320Ci A5S325Z Output
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Drive extension | 1 | 03/2005 | 24137509503 | $214.15 | +core | |||
| only in conjunction with | |||||||||
| -- | Set of adjusting plates | 1 | 03/2005 | 24271421791 | $51.43 | ||||
| 02 | Lock Ring | 75X2,5 | 1 | 03/2005 | 24131219346 | $3.95 | |||
| 03 | Ball bearing | 75X42X37 | 1 | 03/2005 | 24131219345 | $100.73 | |||
| only in conjunction with | |||||||||
| -- | Set of adjusting plates | 1 | 03/2005 | 24271421791 | $51.43 | ||||
| 04 | Shaft seal | 52X68X8 | 1 | 03/2005 | 24137509504 | $10.33 | |||
| 05 | O-ring | 128X3 | 1 | 03/2005 | 24201217321 | $9.32 | |||
| 06 | Set of adjusting plates | 1 | 03/2005 | 24271421791 | $51.43 | ||||
| 07 | Ring nut | 1 | 03/2005 | 24201219142 | $17.87 | ||||
| 08 | Output flange | 1 | 03/2005 | 24207509505 | $251.81 | +core | |||
| only in conjunction with | |||||||||
| -- | Set of adjusting plates | 1 | 03/2005 | 24271421791 | $51.43 | ||||
| 09 | Hex bolt | M8X22 | 7 | 03/2005 | 24201219139 | $3.05 | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
