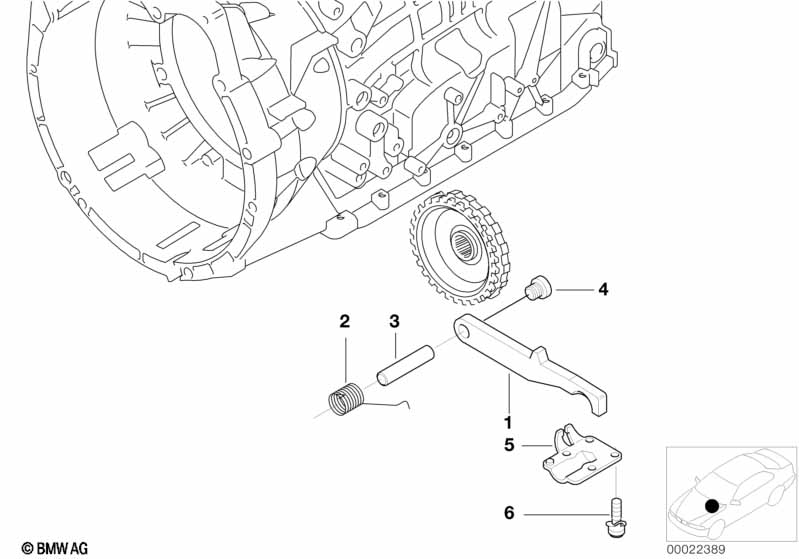

3' E46 320Ci A5s325z parking lock
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Pawl | 1 | 03/2005 | 24531219285 | $58.10 | ||||
| 02 | Retainer spring | 1 | 03/2005 | 24531219286 | $2.70 | ||||
| 03 | Pin | 1 | 03/2005 | 24531219284 | $3.71 | ||||
| 04 | Screw Plug With Gasket Ring | M12X1,5 | 1 | 03/2005 | 24117552350 | $6.35 | |||
| 05 | Guide plate | 1 | 03/2005 | 24531219287 | $25.86 | ||||
| 06 | Fillister-head screw | M6X20 | 4 | 03/2005 | 24531215476 | $1.75 |
